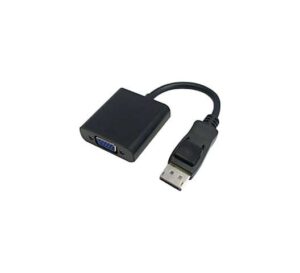

Display port to VGA Adapter
- Display Port to VGA adapter supports PC resolutions up to 1920×1200 as well as HDTV resolutions up to 1080p Plug and play, no software required.
- Display Port to VGA adapter lets you connect a VGA computer monitor to a DisplayPort video card or other DisplayPort source.
- The adapter uses integrated chip which provides an active digital to analog conversion
Display Port to VGA Adapter specifications
| Active or Passive Adapter | Active | |
| Adapter Style | Adapters | |
| Audio | No | |
| AV Input | DisplayPort – 1.2 | |
| AV Output | VGA | |
| PERFORMANCE | ||
|---|---|---|
| Audio Specifications | VGA – No Audio Support | |
| Maximum Analog Resolutions | 1920×1200 | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 – DisplayPort (20 pin) Male | |
| Connector B | 1 – VGA (15 pin, High Density D-Sub) Female | |
| ENVIRONMENTAL | ||
| Humidity | 10%-85% RH | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 3.9 in [100 mm] | |
| Color | Black | |
| Material | Plastic | |
| Product Height | 0.6 in [1.4 cm] | |
| Product Length | 9.1 in [23 cm] | |
| Product Width | 1.5 in [37 mm] | |
| Weight of Product | 1.2 oz [34 g] | |
