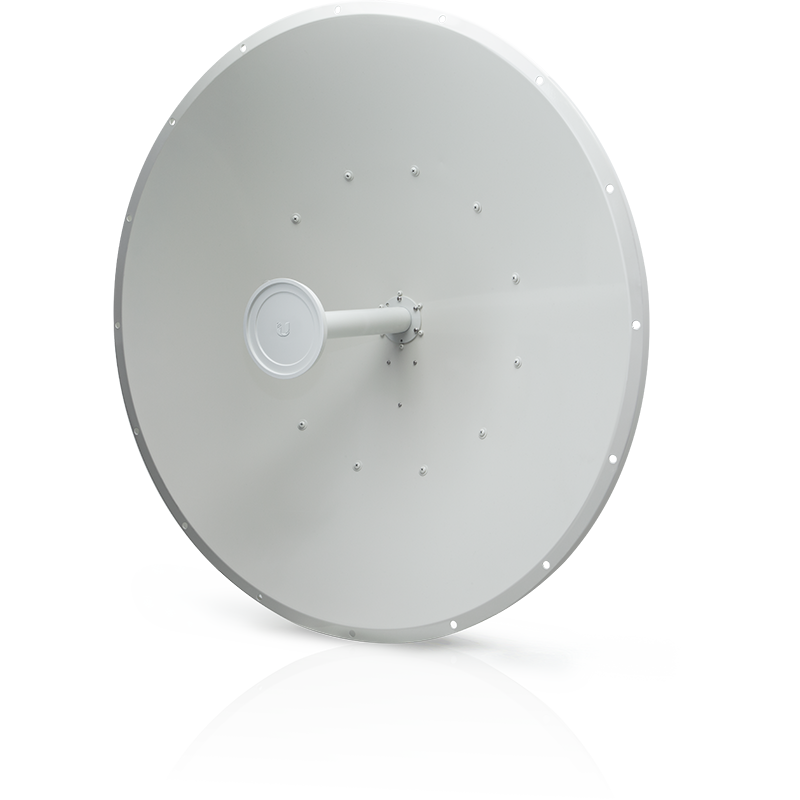

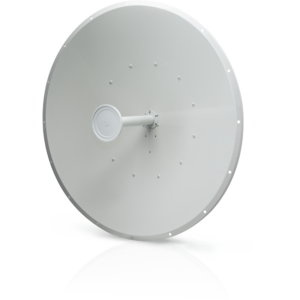

Ubiquiti RocketDish 5GHz 30dBi (RD-5G30)
Product Overview
The Ubiquiti RocketDish RD-5G30 is a high-performance 5GHz 30dBi parabolic dish antenna designed for long-distance, point-to-point (PtP) wireless links.
Engineered to pair seamlessly with Ubiquiti’s Rocket M5 or Rocket Prism radios, the RocketDish transforms them into powerful outdoor backhaul antennas, delivering exceptional signal strength, low interference, and stable connectivity over long ranges.
Built for durability and precision, the RocketDish features a robust, weatherproof aluminum design, integrated radome support, and airMAX compatibility, making it an ideal solution for ISPs, enterprises, and backbone wireless links.
Key Features
5GHz 30dBi high-gain parabolic dish antenna for long-distance wireless connections.
Optimized for Ubiquiti Rocket radios (M5, Prism, airMAX, and airFiber series).
Provides excellent directivity and noise isolation for superior performance.
airMAX® technology support for enhanced scalability and throughput.
Durable outdoor construction with UV and weather resistance.
Includes precision alignment hardware for easy installation.
Optional radome cover reduces wind load and protects the feedhorn.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RD-5G30 |
| Frequency Range | 5.1 – 5.9 GHz |
| Gain | 30 dBi |
| Polarization | Dual Linear |
| Beamwidth | 5° |
| VSWR | < 1.5:1 |
| Impedance | 50 Ohms |
| Max. VSWR | 1.5:1 |
| Connector | (2) RP-SMA connectors |
| Compatible Radios | Rocket M5, Rocket Prism 5AC, Rocket Prism 5AC Gen2 |
| Mounting | Universal pole mount with precision alignment kit |
| Wind Survivability | Up to 200 km/h |
| Dimensions | 650 × 650 × 386 mm |
| Weight | 7.4 kg |
| Enclosure | Die-cast aluminum, powder-coated finish |
| Operating Temperature | -40°C to +80°C |
Applications
Long-distance point-to-point (PtP) wireless backhaul links
ISP and enterprise backbone connections
High-capacity wireless bridge setups
Outdoor rural or industrial data links
Wireless network extension in low-interference zones
Why Choose the RocketDish RD-5G30
Delivers superior link quality and long-range performance
Seamless integration with Ubiquiti Rocket radios
High-gain design for enhanced signal strength and reduced interference
Rugged construction ideal for all-weather outdoor deployments
Cost-effective and reliable solution for professional wireless infrastructure
Delivery & Support
We at Ace Tech Pro LTD offer fast delivery options, 100% genuine product guarantee and customer support.
Order Now!
Order now at Ace Tech Pro LTD or visit our shop at Rahimtullah Trust Building 2nd Floor Shop 11 along Moi Avenue.
