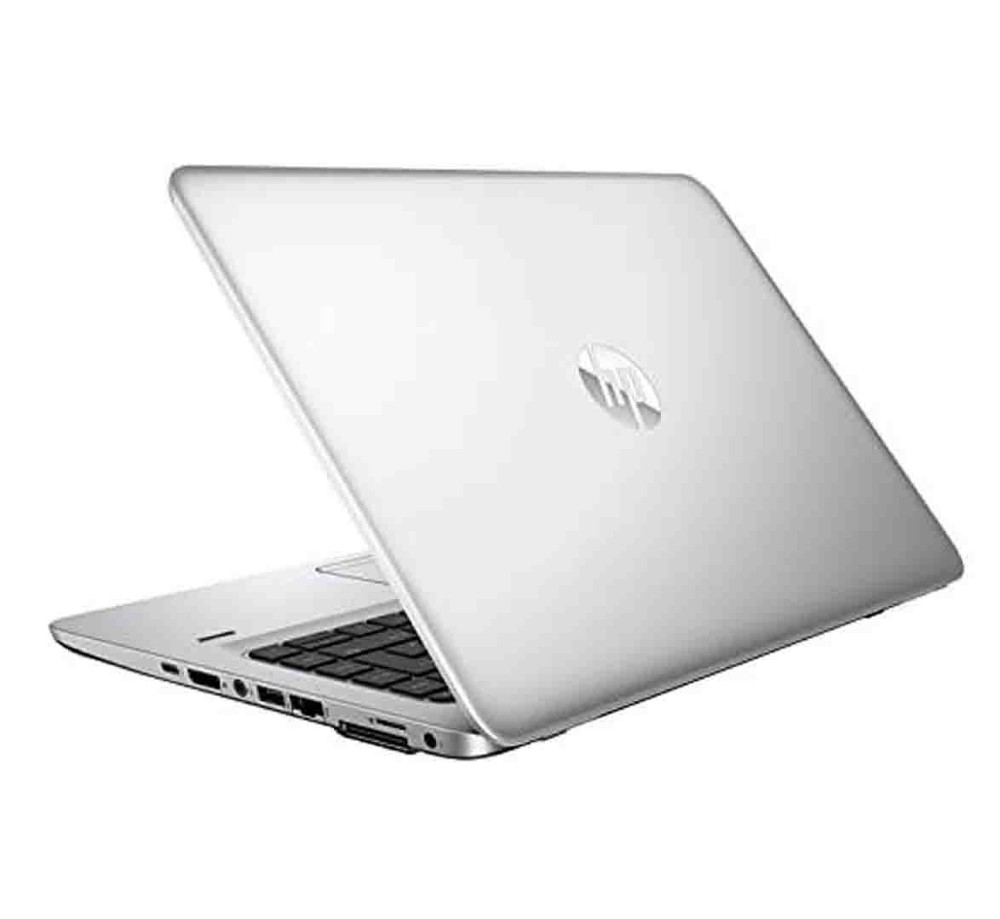

HP EliteBook MT42 Mobile Thin Client AMD A8 8TH GENERATION 4GB RAM 500GB HDD
HP EliteBook MT42 Mobile Thin Client AMD A8 8TH GENERATION 4GB RAM 500GB HDD - Image 2
HP EliteBook MT42 Mobile Thin Client AMD A8 8TH GENERATION 4GB RAM 500GB HDD - Image 3
Share
Compare Wishlist
-31%

HP EliteBook MT42 Mobile Thin Client AMD A8 8TH GENERATION 4GB RAM 500GB HDD

in HP Laptops
Sku: HP MT42

KSh 18,599.00 Save:KSh 8,401.00(31%)

Available in stock

Compare Wishlist
Description
Feature
Description
Operating system
Preinstalled
  • Windows Embedded Standard 7E (32-bit)

    NOTE:

    Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates.
  • Windows 10 IoT Enterprise for Thin Clients (planned availability: December 2015)
Accelerated processing unit
AMD A8-Pro-8600B
Graphics
Integrated graphics

MD Radeon R6 – with shared video memory

  • Supports dual-display ports through optional docking station
  • Supports 3 independent displays when on the HP 2013 UltraSlim Docking Station
Display
Internal
14 in diagonal LED backlit FHD Slim eDP SVA anti-glare (1920 x 1080) with camera

NOTE:

HD content required to view HD images
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1200 external resolution at 75 Hz
Display port
Supports resolutions up to 32000 x 2000 at 60 Hz
Number of displays supported with docking
Supports dual-display ports through optional docking station1
Supports 3 independent displays when on the HP 2013 UltraSlim Docking Station1

NOTE:

Resolutions are dependent upon monitor capability, and resolution and color depth settings
Storage and drives
Mini card solid state drive
32 GB M.2 (NGFF) 2242 Solid State Drive (SSD)

NOTE:

For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less
Memory
Standard
  • DDR3L PC3L-12800 (with transfer rates up to 1600MT/s)
  • Two SODIMM slots (only one slot is populated)

NOTE:

Memory is non customer accessible / upgradeable

Supports the following configurations

  • 4096 MB Total System Memory (4096 MB x 1)
  • 8192 MB Total System Memory (4096 MB x 2)
Maximum
  • Up to 8 GB

NOTE:

With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots

NOTE:

Memory speed is dependent on processor. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Networking/communications
Wireless WAN (WWAN)
  • HP lt4120 LTE/HSPA+ 4G Mobile Broadband
  • HP hs3110 HSPA+ Mobile Broadband

NOTE:

WWAN use requires separately purchased service contract and factory configuration. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products, and in all regions.
Wireless LAN (WLAN) via Minicard
Broadcom 943228 a/b/g/n (2×2) dual band 802.11 with Bluetooth 4.0 LE 2

NOTE:

All wireless options are sold separately or as optional features. For all 802.11 wireless, wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.
Wireless Personal Area Network (WPAN)
Bluetooth 4.0 supported via combo card
Communications
Broadcom 5762 10/100/1000 Ethernet NIC with DASH Support

NOTE:

The term “10/100/1000” or “Gigabit” Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
Audio/multimedia
Audio
  • Bang & Olufsen
  • HP Clear Sound Amp
  • HP Noise Reduction Software
  • Digital Microphones (Dual Array)
  • 2 Premium Stereo Speakers
Webcam
  • 720p HD webcam

    NOTE:

    Internet access required

    NOTE:

    HD content required to view HD images
Keyboards/pointing devices/buttons and function keys
HP Premium Keyboard
  • The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and includes an all-metal keyboard deck for greater rigidity. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, and function keys. U.S. and International key layouts are available.
Pointing devices
  • On/Off button
  • Taps enabled as default
  • Gestures enabled by default – 2 Finger Scrolling, 2 Finger Zoom (Pinch)
Buttons and function Keys
  • FF1 – Sleep
  • F2 – Blank
  • F3 – Blank
  • FF4 – Display switching
  • FF5 – Brightness down
  • FF6 – Brightness up
  • FF7 – Blank
  • FF8 – Volume down
  • FF9 – Volume up
  • FF10 – Mic mute
  • FF11 – Blank
  • FF12 – Num lock
Software and security
HP software
  • HP Device Manager
  • HP Velocity
  • HP Easy Shell
Security
  • Security Lock slot (Lock sold separately)
  • TPM 1.2/2.0 and TPM Enhanced Drive Lock
  • Integrated Smart Card Reader
  • Preboot Authentication (Password, Smart Card)

NOTE:

Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).
Power
Power supply
  • HP 45W Smart AC adapter
  • HP 45W 2-prong DC jack AC Adapter (Japan and England only)
  • HP 65W Smart AC Adapter EM (Asia, China and India only)
Power cord is localized:
  • 2-wire cord (only available with 45W 2-prong AC Adapter)
  • 3-wire cord(with ground pin)(not available with 2-prong adapter)
Available in 2 lengths:
  • 1 or 1.8 m (3.2 ft or 6 ft )
  • Total length including external AC adapter is 2.86 or 3.66 m (9.2 ft or 12 ft )
Primary battery
  • HP 3-cell Long Life Li-Ion 46 WHr (4.08Ahr)

NOTE:

Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform.
Battery life
TBD
System Standby Time
TBD
Power conservation
  • Standby
  • ACPI compliance
Weights and dimensions
Weight
Starting at 1.54 kg (3.41 lbs)
(3-cell battery (46WHr), UMA, no FPR, 1 SODIMM, WLAN, M.2 SSD, no camera, no WWAN, FHD Panel)
Dimensions (W x D x H)
338 x 237 x 18.9 mm (13.60 x 9.51 x 0.94 in)

NOTE:

Weight varies by configuration and components

NOTE:

Height varies depending upon where on the notebook the measurement is made
Ports/slots
Ports
Left side:
  • (1) USB 3.0 Charging Port
  • (1) VGA
Right side:
  • (1) USB Basic Type-C
  • (1) DisplayPort
  • (1) RJ-45 / Ethernet
  • (1) Docking connector
  • (1) Headphone/Microphone Combo
  • (1) Power connector

NOTE:

Cables are not included
Expansion slots:
  • (1) SD media reader (Supports SD, SDHC, SDXC)
  • (1) SC reader
  • (1) Micro SIM Slot
Service and support
HP Support offers 3-year, 1-year and 90 day limited warranty options depending on country. Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform. On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go beyond the standard limited warranties.

NOTE:

Sold separately or as an optional feature

NOTE:

Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. Consult the HP Customer Support Center for details.

Displays

14 in diagonal LED backlit FHD Slim eDP SVA anti-glare (1920 x 1080)

Specifications
Description
Outline dimensions (W x H x D)
32.09 x 20.56 x 0.3 cm (12.6 x 8.09 x 0.12 in in)
Active area
30.93 x 17.4 cm (12.18 x 6.85 in )
Weight
340 g (0.75 lb) max
Diagonal size
(35.6 cm) (14 in)
Surface treatment
Anti-glare
Contrast ratio
300:1
Refresh rate
60 Hz
Brightness
300 nit (typical)
Pixel resolution
Format:
1920 x 1080 (FHD)
Configuration:
RGB Stripe
Interface
eDP 1.2+PSR (2 lane)
LCD mode
IPS/FFS/AHVA
PPI
157 ppi
Viewing angle
SVA 40/40/15/30 (Left/Right/Down/Up)

Storage and drives

32 GB M.2 SATA-3 Solid State Drive

Specifications
Description
Drive weight
8.5 g – 10 g (0.019 – 0.022 lb)
Capacity
32 GB
Height
2.23 mm – 3.58 mm (0.09 – .14 in)
Width
22 mm (0.87 in)
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential Read:
Up to 540 MB/s (Compressible Performance)
Operating temperature
0° to 70° C (32° to 158° F) (ambient temperature)
Featuers
ATA Security, DIPM; TRIM; DEVSLP

Security

Smart card reader

Specifications
Description
Smart card standard
PC/SC 2.0 for Windows smart card standard
Dimensions (L x W x H)
10.5 x 2 x 8.2 mm (0.41x 0.08 x 0.32 in)
Smart card support
ISO 7816 Class A and AB smart cards
Smart card interface
Smart Card Interface with T = 0 and T = 1 support
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
Operating systems
No driver is required for this device. Native support is provided by the operating system.
Power
Normal mode:
With card present, before being suspended: 40.9 mA
Without card present, before being suspended: 33.16 mA
After being suspended with smart card present: 380 μA
After being suspended without smart card present: 380 μA
Power saving mode :
With card present, before being suspended: 40.6 mA
Without card present: 380 μA
After being suspended with smart card present: 380 μA
Featuers
Support single slot
Support T0, T1 protocol
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
Support ISO7816 Class A, B and C (5V/3V/1.8V) card
Implemented as an USB full speed device with bulk transfer endpoint, Mass
Storage endpoint
Built-in PLL for USB and Smart Card clocks requirement
Support EEPROM for USB descriptors customization (PID/VID/ iManufacturer/iProduct/Serial Number), Direct Web Page Link, and accessing memory card module
EEPROM programmable via USB interface
Support software update for memory card module
Support Direct Web Page Link via configuration in external EEPROM
Support short APDU and extended APDU
Compatible with Microsoft USB-CCID driver
Support remote wake up through inserting card/removing card
Support USB selective suspend
Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode)
Support card power over current protection mechanism
Built in resonator
Support USB LPM (Link Power Management) features
Embedded clock source

Networking/communications

HP lt4120 LTE/EVDO/HSPA+ Gobi 4G Mobile Broadband Module

Specifications
Description
Technology/operating bands
LTE
  • 2100 (Band 1) MHz
  • 1900 (Band 2) MHz
  • 1800 (Band 3) MHz
  • 1700/2100 (Band 4) MHz
  • 850 (Band 5) MHz
  • 2600 (Band 7) MHz
  • 900 (Band 8) MHz
  • 700 (Band 12 lower) MHz
  • 700 (Band 13 upper) MHz
  • 700 (Band 17 lower) MHz
  • 800 (Band 20) MHz
  • 700 (Band 28) MHz
HSPA+
  • 2100 (Band 1) MHz
  • 1900 (Band 2) MHz
  • 1700/2100 (Band 4) MHz
  • 850 (Band 5) MHz
  • 900 (Band 8) MHz
EV-DO
  • 850 (BC0) MHz
  • 1900 (BC1) MHz
Only work with Verizon network
E-GPRS
  • 1900 (Band 2) MHz
  • 1800 (Band 3) MHz
  • 850 (Band 5) MHz
  • 900 (Band 8) MHz
Wireless protocol standards
3GPP Release 10 LTE Specification CAT.4, 20MHz BW
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
1xEVDO Release 0, A and B
E-GPRS
Class B
Multi-slot class 33
coding schemes CS1 – CS4 and MSC1 – MSC9
GPS
Standalone
A-GPS (MS-A, MS-B and XTRA)
GPS bands
1575.42 MHz ± 1.023 MHz
GLONASS 1596-1607 MHz
Maximum data rates
LTE
  • 150 Mbps (Download)
  • 50 Mbps (Upload)
DC-HSPA+
  • 42 Mbps (Download)
  • 5.76 Mbps (Upload)
HSPA+
  • 21Mbps (Download
  • 5.76 Mbps (Upload)
CDMA 1xRTT
  • 153.6 kbps (Download)
  • 153.6 kbps (Upload)
EVDO Rel.A
  • 3.1 Mbps (Download)
  • 1.8 Mbps (Upload)
EVDO Rel.B
  • 14.7 Mbps (Download)
  • 5.4Mbps (Upload)
EDGE
  • 236.8 kbps (Download)
  • 236.8 kbps (Upload)
GPRS
  • 85.6 kbps(Download)
  • 85.6 kbps (Upload)
Maximum output power
LTE
  • 23 dBm
HSPA+
  • 23.5 dBm
1xRTT/EVDO
  • 24dBm
E-GPRS
  • 1900/1800: 26 dBm
E-GPRS
  • 900/850: 27
GPRS
  • 1900/1800: 29.5 dBm
GPRS
  • 900/850: 32.5 dBm
Maximum power consumption
LTE
  • 1,200 mA (peak); 900 mA (average)
HSPA+
  • 1,100 mA (peak); 800 mA (average)
1xRTT/EVDO
  • 1,000 mA (peak); 700 mA (average)
E-GPRS
  • 2,800 mA (peak); 500 mA (average)
Form factor
M.2, 3042-S3 Key B
Weight
6.2 g
Dimensions (L x W x H)
42 x 30 x 2.3 mm

NOTE:

Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries

HP hs3110 HSPA+ Intel mobile broadband module

Specifications
Description
Technology/operating bands
HSPA+
  • 2100 (Band 1) MHz
  • 1900 (Band 2) MHz
  • 1700 (Band 4) MHz
  • 850 (Band 5) MHz
  • 900 (Band 8) MHz
E-GPRS
  • 1900 (Band 2) MHz
  • 1800 (Band 3) MHz
  • 850 (Band 5) MHz
  • 900 (Band 8) MHz
Wireless protocol standards
E-GPRS
  • Class B
  • Multi-slot class 33
  • Coding schemes CS1 – CS4 and MSC1 – MSC9
UMTS/WCDMA
  • Release 99 and Release 7
Maximum data rates
HSPA+
  • 21 Mbps (Download)
  • 5.76 Mbps (Upload)
HSPA
  • 7.2 Mbps (Download)
  • 5.76 Mbps (Upload)
WCDMA PS
  • 384 Mbps (Download)
  • 384 Mbps (Upload)
WCDMA CS
  • 64 Mbps (Download)
  • 64 Mbps (Upload)
E-GPRS
  • 296 Mbps (Download), 236.8 Mbps (Upload)
GPRS
  • 107 Mbps (Download), 85.6 Mbps (Upload)
GPS
Standalone
A-GPS (MS-A, MS-B and XTRA)
GPS bands
1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz
Maximum output power
Peak: 2500 mA
Average: 600 mA
Form factor
M.2
3042-S3 Key B
Weight
6 g
Dimensions (W x L x H)
42 x 30 x 2.3 mm (1.65 x 1.18 x 0.09 in)

Broadcom 943228 Dual Band 802.11 a/b/g/n (2×2) Bluetooth 4.0 Combo

Specifications
Description
Wireless LAN
IEEE 802.11a
Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency band
802.11b/g/n
  • 2.402 – 2.482 GHz

NOTE:

The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
802.11a
  • 4.9 – 4.95 GHz (Japan)
  • 5.15 – 5.25 GHz
  • 5.25 – 5.35 GHz
  • 5.47 – 5.725 GHz
  • 5.825 – 5.850 GHz

NOTE:

Indonesia only supports 5.725 – 5.825 GHz (CH149 – CH161)
Antenna structure
2 transmit; 2 receive (2×2).
Data rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security
IEEE and Wi-Fi compliant 64 / 128 bit WEP encryption for a/b/g mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
WAPI
Sub-channels
Multinational support with frequency bands and channels compliant to local regulations
Network architecture
Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output power
802.11b: +16dBm minimum
802.11g: +14dBm minimum
802.11a HT20(2.4GHz): +14dBm minimum
802.11n HT20(2.4GHz): +13dBm minimum
802.11n HT40(2.4GHz): +13dBm minimum
802.11n HT20(5GHz): +12dBm minimum
802.11n HT40(5GHz): +12dBm minimum
Power consumption
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver sensitivity
802.11b, 1Mbps: -94dBm maximum
802.11b, 11Mbps: -86dBm maximum
802.11g, 6Mbps: -88dBm maximum
802.11g, 54Mbps: -74dBm maximum
802.11a, 6Mbps : -86dBm maximum
802.11a, 54Mbps: -72dBm maximum
802.11n, MCS07: -69dBm maximum
802.11n, MCS15: -66dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display enclosure
Two embedded antennas for 2.4 GHz are provided to the card to support WLAN and Bluetooth communications. (Support Dual antenna or Single antenna, depend on platform requirement)
Form factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230: 2.3 x 22 x 30 mm
Type 1630: 2.3 x 16 x 30 mm
Weight
Type 2230: 2.8 g
Type 1630: 2 g
Operating voltage
3.3v +/- 9%
Temperature
Operating:
–10° to 70° C (14° to 158° F)
Non-operating:
–40° to 80° C (–40° to 176° F)
Humidity
Operating:
10% to 90% (non-condensing)
Non-operating:
5% to 95% (non-condensing)
Altitude
Operating:
0 to 3,048 m (10,000 ft)
Non-operating:
0 to 15,240 m (50,000 ft)
LED activity
LED Amber – Radio OFF; LED White – Radio ON

NOTE:

Check latest software/driver release for updates on supported security features

NOTE:

Maximum output power may vary by country according to local regulations.

NOTE:

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation)

HP integrated module with Bluetooth 4.0+ EDR wireless technology

Specifications
Description
Bluetooth specification
4.0+ EDR compliant
Frequency band
2402 to 2480 MHz
Number of available channels
79 (1 MHz) available channels
Data rates and throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric
Transmit power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR
Receiver sensitivity
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 10 m (33 ft)
Electrical interface
USB 2.0 compliant
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth software supported
Microsoft Windows Bluetooth software
Full support of Bluetooth Security Provisions
Power management
Microsoft Windows ACPI, and USB Bus Support
Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff
ETS 300 328
ETS 300 826
Security certifications
All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Certifications
Low Voltage Directive IEC950, UL, CSA, and CE Mark
Bluetooth profiles supported
Serial Port Profile (SPP)
Service Discovery Application Profile (SDAP)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)

Audio/multimedia

DTS studio sound

Specifications
Description
Hardware
Implementation:
ALC3228
Function key volume controls:
Volume up, volume down, and mute
Full duplex:
yes
Microphone in:
stereo
Headphone/line out:
stereo
Integrated microphone:
yes, dual digital microphone array
Audio output quality
Frequency response:
20 Hz – 20k Hz
Signal to noise ratio:
> 85 dB
Total harmonic distortion:
0.01%
Play/Record sampling rate:
8 kHz – 48kHz
DAC:
16, 20, or 24-bit
ADC:
16, 20, 24-bit
Integrated stereo speakers
Power rating:
2 watts
Impedance:
4 ohms

Power

HP 45W Smart AC Adapter

Specifications
Description
Dimensions
9.5 x 4 x 2.65 cm (3.74 x 1.57 x 1.04 in )
Weight
175 g (0.386 lb) max
Input
90 to 265 VAC
Input Efficiency:
87.74% at 11 5 VAC and 88.4% at 230 VAC
Input frequency range:
47 to 63 Hz
Input AC current:
1.4 A at 90 VAC
Output
Output power:
45 W
DC output:
9.50 V
Hold-up time:
5 msec at 115 VAC input
Output current limit:
<8.0A
Connector
3 pin/grounded, mates with interchangeable cords
Environmental design
Operating temperature:
0° to 35° C (32° to 95° F)
Non-operating (storage) temperature:
-20° to 85° C (-4° to 185° F)
Altitude:
0 to 16,400 ft (0 to 5,000 m)
Humidity:
20% to 95%
Storage humidity:
10% to 95%
EMI and safety certifications
CE Mark – full compliance with LVD and EMC directives
Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE
MTBF – over 200,000 hours at 25°C ambient condition

HP 65W Smart AC Adapter EM

Specifications
Description
Dimensions
12.65 x 5.0 x 3.0 cm (4.98 x 1.97 x 1.18 in )
Weight
280 g (0.62 lb)
Input
90 to 265 VAC
Input Efficiency:
87.74% at 11/230 VAC
Input frequency range:
47 to 63 Hz
Input AC current:
1.7 A at 90 VAC, 0.85 A at 180 VAC
Output
Output power:
65 W
DC output:
19.5 V
Hold-up time:
5 msec at 115 VAC input
Output current limit:
< 11A, over voltage protection -29 V max automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental design
Operating temperature:
0° to 35° C (32° to 95° F)
Non-operating (storage) temperature:
-20° to 85° C (-4° to 185° F)
Altitude:
0 to 16,400 ft (0 to 3,048 m)
Humidity:
20% to 95%
Storage humidity:
10% to 95%
EMI and safety certifications
CE Mark – full compliance with LVD and EMC directives
Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE
MTBF – over 200,000 hours at 25°C ambient condition

HP 3-cell Long Life Li-Ion (46.5 WHr)

Specifications
Description
Dimensions
0.68 x 10.28 x 19.8 cm (0.27 x 4.05 x 7.79 in )
Weight
216.3 g, 0.48 lb (ATL), 217.8 g, 0.48 lb (COS)
Cells/type
3-cell Lithium-Ion Polymer
Energy
Voltage:
11.4 V
Amp-hour capacity:
4080 mAh
Watt-hour capacity:
46.5 Wh
Temperature
Operating (Charging):
0° to 45° C (32° to 113° F)
Operating (Discharging):
-10° to 60° C (14° to 140° F)
Non-operating temperature:
-5° to 40° C (41° to 104° F)
Fuel gauge LED
NA
Warranty
1000 cycles >65% (at 23˚C)
Optional travel battery available
No
Reviews (0)
Ratings

0.0

0 Product Ratings
5
0
4
0
3
0
2
0
1
0

Review this product

Share your thoughts with other customers

Write a review

Reviews

There are no reviews yet.

Similar Products
