Product image

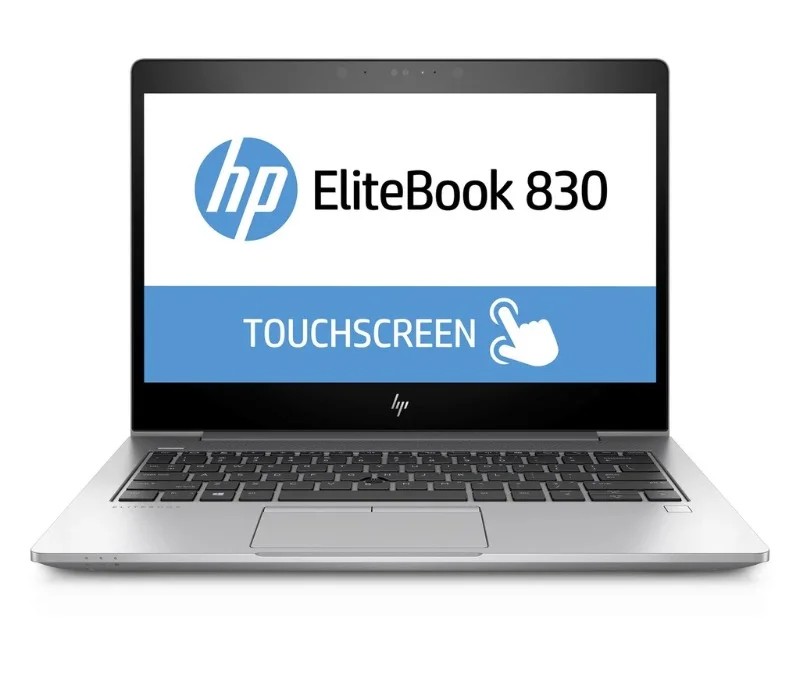

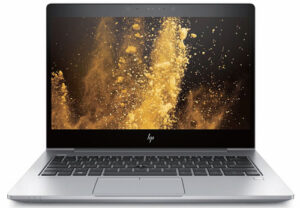

FigureĀ : HP EliteBook 830 G5 Notebook PC
Operating systems
|
Specification
|
Description
|
|
Preinstalled
|
Windows 10 Pro 641
Windows 10 Home 641
FreeDOS 1.2
|
NOTE:
1Not all features are available in all editions or versions of Windows. Systems might require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 automatic updates are always enabled. ISP fees might apply and additional requirements might apply over time for updates.In accordance with Microsoft support policy, this product does not support Windows 8 or Windows 7. HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation or later processors, or provide any Windows 8 or Windows 7 drivers.
Processors
|
Specification
|
Description
|
|
Intel Core i5-8350U
|
1.7 GHz base frequency, up to 3.6 GHz with Intel Turbo Boost Technology
6 MB cache and 4 cores
Intel UHD Graphics 620
|
|
Chipset
|
Integrated with processor
|
NOTE:
Multicore is designed to improve performance of certain software products. Not all customers or software applications necessarily benefit from use of this technology. Performance and clock frequency vary depending on application workload and hardware and software configurations. Intel numbering is not a measurement of higher performance.Processor speed denotes maximum performance mode; processors run at lower speeds in battery optimization mode.
Graphics
|
Specification
|
Description
|
|
Integrated
|
Intel HD Graphics 620
Intel UHD Graphics 620
|
|
Supported
|
Supports HD decode, DX12, and HDMI 1.4b
|
NOTE:
High-definition (HD) content is required to view high definition images.
Display
|
Specification
|
Description
|
|
Non-touch (sold separately or as an optional feature)
|
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 220 cd/m2, 45% sRGB (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 220 cd/m2, 45% sRGB with HD camera (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 220 cd/m2, 45% sRGB with HD IR camera (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 220 cd/m2, 45% sRGB for WWAN (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 220 cd/m2, 45% sRGB with HD camera for WWAN (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 220 cd/m2, 45% sRGB with HD IR webcam for WWAN (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 400 cd/m2, 72% sRGB with ambient light sensor and HD IR webcam (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS anti-glare LED-backlit, 400 cd/m2, 72% sRGB with ambient light sensor and HD IR webcam for WWAN (1920 x 1080)
|
|
Touch (sold separately or as an optional feature)
|
33.78 cm (13.3 in) diagonal FHD IPS LED-backlit touch screen with Corning Gorilla Glass 3, 220 cd/m2, 45% sRGB with HD IR camera (1920 x 1080)
33.78 cm (13.3 in) diagonal FHD IPS LED-backlit touch screen with Corning Gorilla Glass 3, 220 cd/m2, 45% sRGB with HD IR webcam for WWAN (1920 x 1080)
|
|
HDMI 1.4b
|
Supports resolution up to 4k at 60 Hz
|
|
Displays supported
|
Supports 2 independent displays when docked on the HP Ultraslim Dock
|
NOTE:
High-definition (HD) content is required to view high definition images.Resolutions are dependent upon monitor capability, and resolution and color depth settings.
Memory
|
Specification
|
Description
|
|
Standard
|
DDDR4-PC4 SODIMMS
(2) SODIMM slots (both slots are customer accessible/upgradable)
Runs at 2133 MT/s for Intel 7th generation processors
Runs at 2400 MT/s for Intel 8th generation processors
|
|
Configurations
|
32 GB DDR4-2400 SDRAM (16 GB x 2)
16 GB DDR4-2400 SDRAM (16 GB x 1)
16 GB DDR4-2400 SDRAM (8 GB x 2)
8 GB DDR4-2400 SDRAM (8 GB x 1)
8 GB DDR4-2400 SDRAM (4 GB x 2)
4 GB DDR4-2400 SDRAM (4 GB x 1)
|
|
Maximum
|
32 GB
|
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If memory speeds are mixed, the system performs at the lower memory speed.
Storage/drives
|
Specification
|
Description
|
|
Primary M.2 Solid State Drive storage
|
128 GB SATA-3 TLC SSD
256 GB PCIe NVMe Value TLC SSD
256 GB PCIe Gen 3×4 NVMe TLC SSD
256 GB SATA-3 TLC Opal 2 SSD
360 GB PCIe Gen 3×4 NVMe TLC SSD (Intel)
512 GB PCIe Gen 3×4 NVMe TLC SSD
512 GB PCIe Gen 3×4 NVMe TLC Opal 2 SSD
512 GB SATA-3 TLC FIPS-140-2 SSD
1 TB PCIe Gen 3×4 NVMe TLC SSD
|
NOTE:
1For solid state drives or hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.
Ports/slots
|
Specification
|
Description
|
|
Ports
|
(1) Thunderbolt (USB Type-C connector)
(2) USB 3.1 Gen 1 (1 charging)
(1) HDMI 1.4b port (cable sold separately)
(1) RJ-45/Ethernet port
(1) Docking connector
(1) Headphone/microphone combo jack
(1) AC power port
(1) VGA port
|
|
Slot
|
(1) SIM card slot
(1) Smart card reader
|
Audio/multimedia
|
Specification
|
Description
|
|
Audio
|
Audio by Bang & Olufsen
(3) Integrated Multi-array microphone
(2) Integrated Stereo Speakers (74 dB)
|
|
Camera
|
HD camera
HD IR camera
|
Keyboards/pointing devices/function keys
|
Specification
|
Description
|
|
HP Premium keyboard
|
Spill-resistant with drain (thin layer of Mylar film under the keyboard)
Backlit (optional)
|
|
Pointing devices
|
Clickpad with multi-touch gestures enabled (taps enabled as default)
Microsoft Precision Touchpad default gestures supported
|
|
Function keys
|
Function keys
ESC ā System information
F1 ā Display switching
F2 ā Blank
F3 ā Brightness down
F4 ā Brightness up
F5 ā Speaker mute
F6 ā Volume down
F7 ā Volume up
F8 ā Microphone mute
F9 ā Backlight toggle (for backlit keyboard) or blank
F10 ā Blank
F11 ā Wifi toggle
F12 ā Sleep
Share/present
Call answer
Call end
Hidden fuctions
Fn+R ā Break
Fn+S ā Sys Rq
Fn+C ā Scroll Lock
|
Networking/communication
|
Specification
|
Description
|
|
Wireless LAN (WLAN)
|
Intel Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2×2) Wi-Fi and Bluetooth 4.2 Combo, vPro
Intel Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2×2) Wi-Fi and Bluetooth 4.2 Combo, non-vPro
Realtek RTL8822BE 802.11ac (2×2) Wi-Fi and Bluetooth 4.2 Combo, non-vPro
|
|
WWAN
|
HP lt4132 LTE/HSPA+ 4G Mobile Broadband
Intel XMM 7360 LTE-Advanced
|
|
Near Field Communication (NFC)
|
NXP NPC300 Near Field Communication module
|
|
Ethernet
|
Intel I219-LM 10/100/1000 GbE, vPro
Intel I219-V 10/100/1000 GbE, non-vPro
|
Software/security
|
Specification
|
Description
|
|
BIOS
|
HP BIOSphere Gen4 (requires Intel 8th generation processors)
HP Sure Start Gen4 (requires Intel 8th generation processors)
HP DriveLock/HP Automatic DriveLock
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Secure Erase (methods outlined in the National Institute of Standards and Technology Special Publication 800-88)
Absolute Persistence Module1
Pre-boot Authentication
HP Wireless Wakeup
|
|
Communication/connectivity
|
HP Native Miracast support
HP LAN-WLAN Protection
|
|
HP Value add software
|
HP Velocity v1.5
HP ePrint Driver with JetAdvantage2
HP Hotkey Support – CMIT
HP Recovery Manager
HP Jumpstart
HP Support Assistant (requires Windows and internet access)
HP Noise Cancellation software
HP Performance Advisor
Ivanti Management Suite (subscription required)
|
|
Microsoft products
|
Buy Office
|
|
Manageability
|
HP Driver packs (available for download)
HP SoftPaq Download Manager (SDM)
HP System Software Manager (SSM) (available for download)
HP BIOS Configuration Utility (BCU) (available for download)
HP Client Catalog (available for download)
HP Management Integration Kit for Microsoft SCCM (available for download)
HP Image Assistant
|
|
Client Security software
|
Microsoft Defender (opt in and internet connection required for updates)
HP Client Security Suite Gen4 (requires Windows)
HP Security Manager (including Credential Manager and HP Password Manager, and HP Spare Key)
HP Fingerprint Sensor (sold separately or as an optional feature)
Power On Authentication
HP Device Access Manager
HP Sure Click (supports Microsoft Internet Explorer and Chromium)
HP Sure Run (requires 8th generation processors)
HP Sure Recover (requires 8th generation processors)
|
|
Security
|
For Windows 10, Trusted Platform Module (TPM) 2.0 (Infineon SLB9670)
Common Criteria EAL4+ Certified
HP Fingerprint Reader
|
|
Other standard security features
|
SATA 0 and 1 port disablement (via BIOS)
RAID (optional and does require a second hard drive)
Serial, USB enable/disable (via BIOS)
Power-on password (via BIOS)
Setup password (via BIOS)
Support for chassis padlocks and cable lock devices
Security lock slot (lock sold separately)
|
