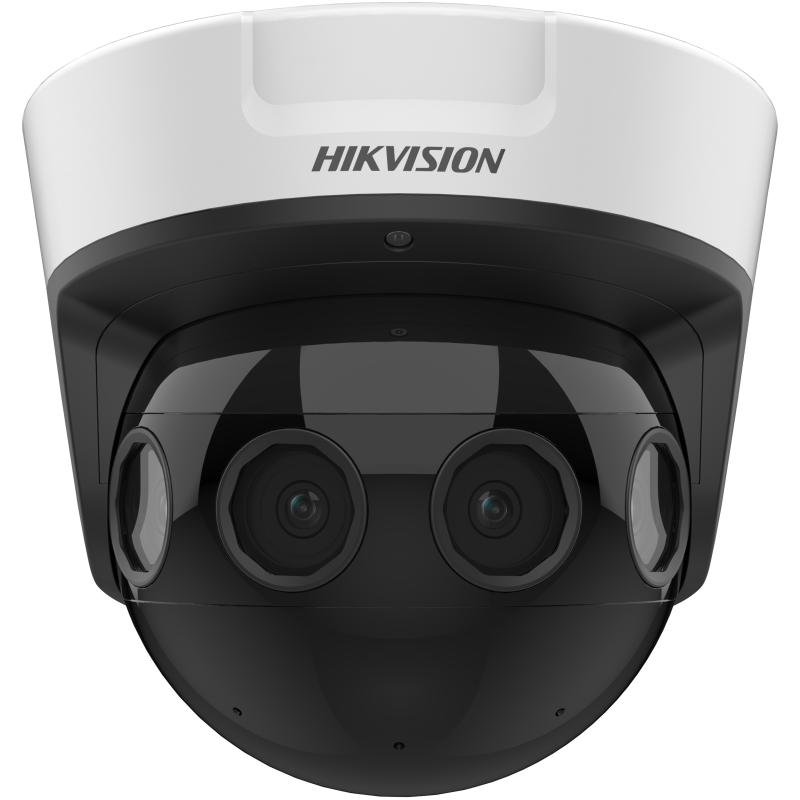

Hikvision DS-2CD6924G0-IHS 8MP 180° PanoVu Multi-Lens Panoramic Network Camera
The Hikvision DS-2CD6924G0-IHS 8MP 180° PanoVu Multi-Lens Panoramic Network Camera is a specialized 8 MP panoramic network camera from the PanoVu series, designed for comprehensive wide-area surveillance with a single device. Featuring four fixed 2.8 mm lenses and 1/1.8″ Progressive Scan CMOS sensors, this camera captures and stitches images to provide a seamless 180° horizontal field of view. It offers multiple display modes including panorama, original, and panorama + ePTZ, allowing for flexible monitoring and virtual pan-tilt-zoom operations without mechanical parts. Built with a rugged, weatherproof housing, a built-in heater for extreme cold starts down to -40°C, and smart analytics like people density counting, this camera is ideal for airports, train stations, shopping malls, large lobbies, and other wide-open spaces requiring complete situational awareness.
Key Features
8 MP High Resolution Panoramic Imaging: Captures detailed wide-area coverage with 8 MP resolution. In panorama mode, it delivers 3840 × 2160 resolution, providing seamless 180° views.
Quad-Lens Stitching Technology: Four fixed 2.8 mm lenses (F1.4) and four separate sensors work together to create a single, cohesive 180° horizontal field of view without blind spots.
Multiple Flexible Display Modes: Supports various viewing formats including Panorama mode (3840 × 2160), Original mode (1920 × 1080 from each sensor), and Panorama + ePTZ mode, which allows for virtual pan, tilt, and zoom operations within the panoramic scene.
Built-in Heater for Extreme Environments: An integrated heater enables ultra-low temperature startup and reliable operation in conditions as cold as -40°C (-40°F), making it suitable for harsh outdoor climates.
EXIR Infrared Technology: Four high-power IR LEDs provide up to 20 meters of night vision with even distribution and an 850 nm wavelength, ensuring 24/7 surveillance capability.
People Density Counting: Deep learning-based analytics count people in panoramic mode to monitor crowd density, enhancing safety in public areas.
Smart Event Detection: Supports line crossing detection, intrusion detection, region entrance/exit, unattended baggage, and object removal detection (in panorama mode) for proactive security.
Rugged Durability: IP67 weatherproof and IK10 vandal-resistant ratings ensure reliable operation against dust, water, and physical impact in demanding environments.
Comprehensive Interfaces: Features 2 alarm inputs, 2 alarm outputs, audio input/output, RS-485, and a Gigabit Ethernet port for flexible integration with security systems.
On-Board Storage: microSD card slot supports up to 256 GB for local recording and edge storage, ensuring footage retention during network interruptions.
Target Cropping: Extracts and displays close-up images of detected targets in panorama mode for enhanced detail.
Technical Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | Panorama mode: 3840 × 2160; Original mode: 1920 × 1080; Panorama+ePTZ mode: 1920 × 1080 |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| Shutter Speed | 1/25 s to 1/100,000 s |
| Day & Night | IR cut filter; Blue glass module to reduce ghost phenomenon |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90° |
| Wide Dynamic Range | Digital WDR |
| Heater | Built-in, supports low-temperature start-up to -40°C |
Lens
| Specification | Details |
|---|---|
| Lens Type | Fixed focal lens, 2.8 mm (four lenses) |
| Focal Length & FOV | 2.8 mm: horizontal FOV 180°, vertical FOV 90° |
| Lens Mount | M16 |
| Focus | Manual, semi-auto |
| Aperture | F1.4 |
DORI Distance (2.8mm Lens)
| Detect | Observe | Recognize | Identify |
|---|---|---|---|
| 32 m (105 ft) | 12.5 m (41 ft) | 6.5 m (21 ft) | 3 m (10 ft) |
Illuminator
| Specification | Details |
|---|---|
| Supplement Light Type | EXIR Infrared (four IR LEDs) |
| Supplement Light Range | Up to 20 m (66 ft) |
| IR Wavelength | 850 nm |
Video
| Specification | Details |
|---|---|
| Main Stream | Panorama+ePTZ mode: Panorama channel: 25/30 fps (1920 × 1080, 1280 × 720); ePTZ channel: 25/30 fps (1920 × 1080, 1280 × 720). Panorama mode: 25/30 fps (3840 × 2160, 2560 × 1440, 1920× 1080). Original mode: 25/30 fps (1920× 1080) |
| Sub-Stream | Panorama mode: 25/30 fps (1280 × 720, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 65 Mbps |
| H.264/H.265 Type | Baseline Profile, Main Profile, High Profile / Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS (only original mode supports) |
| Privacy Mask | 4 programmable polygon privacy masks (only original mode supports) |
| Target Cropping | Yes (only panorama mode supports) |
Audio
| Specification | Details |
|---|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-192 Kbps (MP2L2), 16-64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Audio Interface | 1 input (line in), 1 output (line out), 3.5 mm connector |
Network
| Specification | Details |
|---|---|
| Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Security | Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200 |
| Web Browser | Plug-in required: IE 8+; Plug-in free: Safari 12+; Local service: Chrome 57+, Firefox 52+ |
Interface
| Specification | Details |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in microSD/microSDHC/microSDXC card slot, up to 256 GB |
| Audio | 1 input (line in), 1 output (line out), 3.5 mm connector |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
Event Management
| Specification | Details |
|---|---|
| Basic Event | Motion detection (panorama/original modes), exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event (Panorama Mode) | Line crossing detection, intrusion detection, region entrance/exit, scene change detection, audio exception, unattended baggage, object removal |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording/capture |
Deep Learning Functions
| Specification | Details |
|---|---|
| People Density | Yes (only panorama mode supports) |
General
| Specification | Details |
|---|---|
| Power | 12 VDC, 1.6 A, max. 24 W, three-core terminal block; PoE: IEEE 802.3at, Class 4, max. 24 W |
| Material | Aluminum alloy |
| Dimensions | 190 mm × 208 mm × 207 mm (7.5″ × 8.2″ × 8.1″) |
| Package Dimensions | 340 mm × 261 mm × 293 mm (13.4″ × 10.3″ × 11.5″) |
| Weight | Approx. 3000 g (6.6 lb.) |
| With Package Weight | Approx. 5000 g (11 lb.) |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Protection Level | IP67 |
| Vandal Resistance | IK10 |
| Language | 33 languages including English, Russian, French, German, Spanish, etc. |
| General Function | Anti-flicker, heartbeat, mirror (only original mode supports), password protection, watermark, IP address filter, pixel counter |
