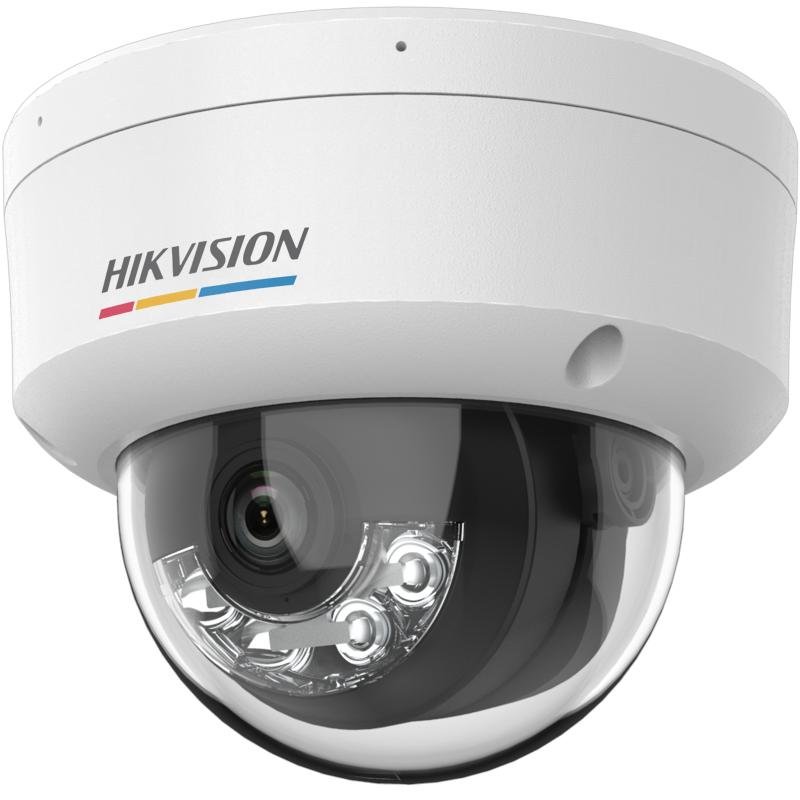

Hikvision DS-2CD1147G2H-LIU 4MP ColorVu Smart Hybrid Light Outdoor Dome Camera with F1.0 Aperture
The Hikvision DS-2CD1147G2H-LIU(2.8MM) is a professional-grade 4 MP fixed dome network camera featuring ColorVu technology combined with Smart Hybrid Light illumination in a discreet, vandal-resistant form factor. This powerful combination delivers vibrant full-color video 24 hours a day, even in extremely low-light conditions down to 0.001 Lux. The F1.0 super-aperture captures maximum light, while the intelligent hybrid light system automatically switches between IR and white light based on human and vehicle detection. With IK08 vandal resistance, human and vehicle classification, built-in audio, and weatherproof design, this camera provides comprehensive surveillance for retail stores, offices, schools, hospitals, hotels, and commercial facilities where both aesthetics and durability are required.
Key Features
ColorVu Technology 24/7: Advanced F1.0 super-aperture and high-performance 1/3″ Progressive Scan CMOS sensor capture vivid full-color images around the clock, even in near-total darkness down to 0.001 Lux.
4 MP High Definition Imaging: Captures exceptional detail with 4 MP resolution (2560 × 1440) for precise identification and evidence-grade video quality.
Smart Hybrid Light Illumination: Dual illuminators provide both IR (for discreet monitoring) and white light (for full-color event capture) with intelligent auto-switching based on human and vehicle detection, up to 30 meters range.
Human and Vehicle Detection: Built-in deep learning algorithms distinguish between humans, vehicles, and other motion sources, reducing false alarms and ensuring alerts for relevant events only.
Vandal-Resistant Design: Rugged dome housing with IK08 impact resistance rating protects against tampering, impacts, and vandalism in public-facing environments.
120 dB True WDR Technology: Handles challenging backlit scenes with both bright and dark areas simultaneously, ensuring clear images in high-contrast lighting conditions such as entrances and window areas.
Efficient H.265+ Compression: Reduces bandwidth and storage requirements by up to 70% compared to standard H.264 compression, lowering total cost of ownership.
Built-in Audio: Integrated microphone captures real-time audio for enhanced situational awareness and evidence collection.
On-Board Storage: microSD card slot supports up to 512 GB for local recording and edge storage, ensuring footage retention during network interruptions.
Weatherproof Durability: IP67 weatherproof rating ensures reliable operation in rain, dust, and extreme temperatures ranging from -30°C to 60°C.
Technical Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 (4 MP) |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON); B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter with auto switch |
| Angle Adjustment | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Wide Dynamic Range | 120 dB |
| Signal-to-Noise Ratio | ≥ 52 dB |
Lens
| Specification | Details |
|---|---|
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 96°, Vertical FOV 52°, Diagonal FOV 114° |
| Aperture | F1.0 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Focus | Fixed |
DORI Distance (2.8mm Lens)
| Detect | Observe | Recognize | Identify |
|---|---|---|---|
| 63 m (207 ft) | 25 m (82 ft) | 12 m (39 ft) | 6 m (20 ft) |
Illuminator
| Specification | Details |
|---|---|
| Supplement Light Type | Smart Hybrid: IR and White Light |
| Supplement Light Range | Up to 30 m (98 ft) |
| Smart Supplement Light | Yes – auto-switching based on target detection |
| IR Wavelength | 850 nm |
Video
| Specification | Details |
|---|---|
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
Audio
| Specification | Details |
|---|---|
| Audio Features | Built-in Microphone, Mono sound |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-160 Kbps (MP2L2), 16-64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
Network
| Specification | Details |
|---|---|
| Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK |
| Security | Password protection, complicated password, watermark, authentication, security audit log, host authentication |
| Client | iVMS-4200, Hik-Connect |
| Simultaneous Live View | Up to 6 channels |
| Web Browser | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Intelligence
| Specification | Details |
|---|---|
| Human/Vehicle Detection | Motion detection with target classification for humans and vehicles |
| False Alarm Reduction | Filters out alarms triggered by animals, foliage, shadows, and weather |
| Region Activation | Supports configurable detection regions |
Event Management
| Specification | Details |
|---|---|
| Basic Event | Motion detection (with human/vehicle classification), video tampering alarm, exception |
| Linkage | Upload to memory card, trigger recording, upload to FTP, notify surveillance center, send email, trigger capture |
General
| Specification | Details |
|---|---|
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W; PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | Base: metal; Cover: plastic |
| Dimensions | Ø121.5 mm × 97.6 mm (Ø4.78″ × 3.84″) |
| Weight | Approx. 550 g (1.2 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Protection Level | IP67 |
| Vandal Resistance | IK08 |
| On-Board Storage | microSD/microSDHC/microSDXC card slot, up to 512 GB |
