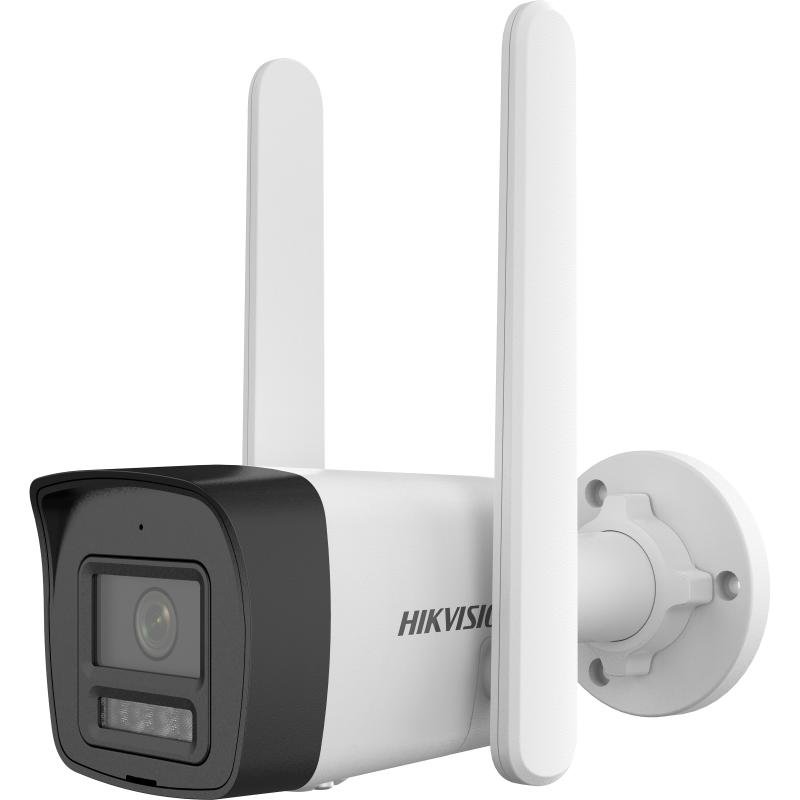

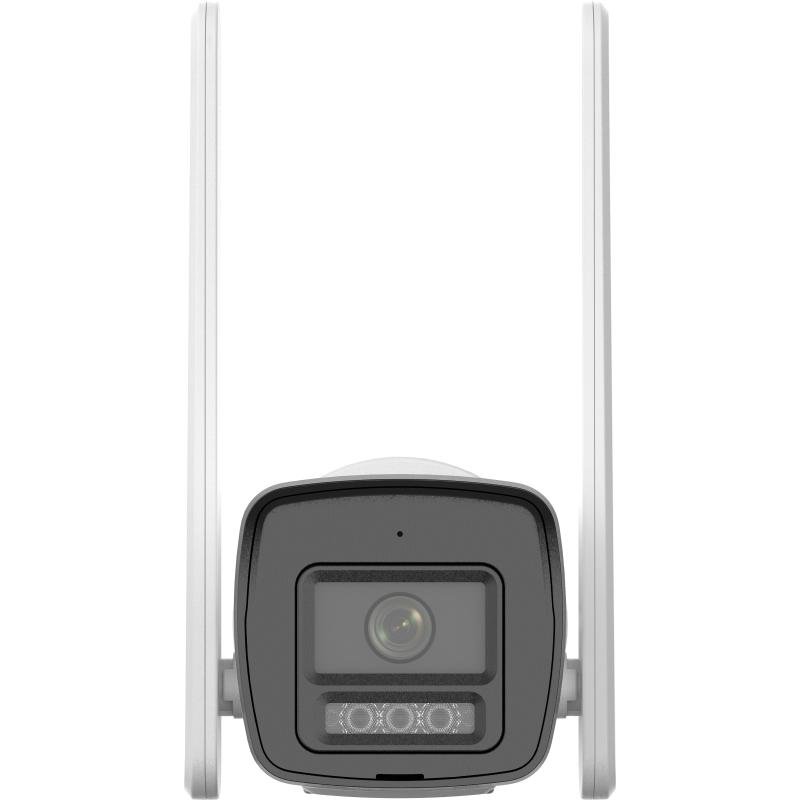

Hikvision DS-2CD1023G2-LIDUF/4G/SL 2MP 4G Smart Hybrid Light Outdoor Bullet Camera
The Hikvision DS-2CD1023G2-LIDUF/4G/SL is a high-performance 2 MP fixed bullet network camera designed for remote outdoor surveillance where wired network infrastructure is unavailable. Featuring Smart Hybrid Light technology and built-in 4G connectivity, this camera intelligently switches between infrared (IR) and white light illumination to provide clear, color images 24/7 while transmitting footage over cellular networks. It is an ideal choice for applications requiring reliable security in remote locations, construction sites, farms, and temporary installations.
Key Features
High Quality Imaging: Captures clear and detailed footage with 2 MP resolution (1920 × 1080).
4G Connectivity: Built-in 4G module enables wireless transmission over cellular networks, ideal for locations without Ethernet infrastructure.
Smart Hybrid Light Technology: Advanced illumination that provides both IR (for discreet night vision) and white light (for deterrence and color imaging), with a range of up to 30 meters. The white light activates automatically upon motion detection to capture events in full color.
Human and Vehicle Detection: Intelligent motion detection can be configured to trigger alarms specifically for humans and vehicles, reducing false alarms from irrelevant motion.
Efficient Compression: Supports H.265+ compression technology to save bandwidth and storage space without compromising image quality.
Built-in Two-Way Audio: Features a built-in microphone and speaker, allowing for real-time communication and audio monitoring.
On-Board Storage: A built-in microSD card slot supports cards up to 512 GB for local storage, ensuring footage is saved even during network interruptions.
Weatherproof Durability: With an IP67 rating, the camera is dust-tight and can withstand harsh weather conditions, making it suitable for reliable outdoor use.
Technical Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
Lens
| Specification | Details |
|---|---|
| Lens Type | Fixed focal lens, 4 mm |
| Focal Length & FOV | 4 mm: Horizontal FOV 83°, Vertical FOV 44°, Diagonal FOV 99° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Iris Type | Fixed |
DORI Distance (4mm Lens)
| Detect | Observe | Recognize | Identify |
|---|---|---|---|
| 56 m | 22 m | 11 m | 5 m |
Illuminator
| Specification | Details |
|---|---|
| Supplement Light Type | IR and White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Specification | Details |
|---|---|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | Digital WDR |
| Privacy Mask | 4 programmable rectangle privacy masks |
Audio
| Specification | Details |
|---|---|
| Audio Features | Built-in Microphone and Speaker, Mono sound |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Sampling Rate | 8 kHz / 16 kHz |
Network
| Specification | Details |
|---|---|
| Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK |
| Security | Password protection, complicated password, watermark, authentication, security audit log |
| Client | iVMS-4200, Hik-Connect |
| Simultaneous Live View | Up to 6 channels |
| Web Browser | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Cellular (4G)
| Specification | Details |
|---|---|
| 4G Bands | FDD-LTE: B1, B3, B5, B7, B8, B20; TDD-LTE: B38, B40, B41; WCDMA: B1, B5, B8; GSM: 900/1800 MHz |
| SIM Card Slot | 1 x Nano SIM card slot |
| Frequency | 4G: 150 Mbps (DL) / 50 Mbps (UL); 3G: 42 Mbps (DL) / 11 Mbps (UL); 2G: 9.6 kbps |
Event Management
| Specification | Details |
|---|---|
| Basic Event | Motion detection (with human/vehicle target classification), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording/capture, audible warning, flashing light |
General
| Specification | Details |
|---|---|
| Power | 12 VDC ± 25%, 0.9 A, max. 11 W; PoE: IEEE 802.3af, Class 3, max. 11 W (when 4G not in use) |
| Material | Metal & Plastic |
| Dimensions | 179 mm × 67.4 mm × 69.1 mm (7.1″ × 2.7″ × 2.7″) |
| Weight | Approx. 340 g (0.75 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection Level | IP67 (IEC 60529-2013) |
Delivery & Support
We at Ace Tech Pro LTD offer fast delivery options, 100% genuine product guarantee and customer support.
Order Now!
Order now at Ace Tech Pro LTD or visit our shop at Rahimtullah Trust Building 2nd Floor Shop GF 11 along Moi Avenue.
