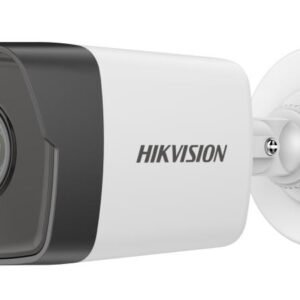

Hikvision DS-2CD1023G0E-I(C) 2MP EXIR Fixed Bullet Outdoor Network Camera
The Hikvision DS-2CD1023G0E-I(C) 2MP EXIR Fixed Bullet Outdoor Network Camera is a cost-effective 2 MP fixed bullet network camera designed for outdoor surveillance applications. Featuring EXIR 2.0 infrared technology, this camera delivers monochrome images in complete darkness with extended IR range and even illumination. The 2 MP resolution captures essential details for security monitoring, making it a practical entry-level camera for residential properties, small businesses, warehouses, and parking areas requiring dependable surveillance. With outdoor housing, H.265+ compression, and flexible power options, this camera offers core security functionality at a budget-friendly price point.
Key Features
High Quality Imaging: Captures footage with 2 MP resolution (1920 × 1080) at 25/30 fps for security monitoring.
EXIR 2.0 Infrared Technology: IR illumination provides up to 30 meters of night vision with even distribution and reduced overexposure.
Efficient H.265+ Compression: Reduces bandwidth and storage requirements compared to standard H.264 compression.
Weatherproof Design: IP67 rating ensures operation in rain, dust, and temperatures from -30°C to 60°C.
Backlit Imaging: Digital WDR provides imaging against strong backlight in high-contrast scenes.
Image Enhancement: 3D DNR and BLC deliver clearer images in challenging lighting conditions.
Flexible Installation: Supports 12 VDC and PoE power for simplified cabling.
Remote Access: Compatible with Hik-Connect app and iVMS-4200 software for remote viewing.
Technical Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 (2 MP) |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter with auto switch |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
| Wide Dynamic Range | Digital WDR |
Lens
| Specification | Details |
|---|---|
| Lens Type | Fixed focal lens, 4 mm |
| Focal Length & FOV | 4 mm: Horizontal FOV 90.2°, Vertical FOV 48.6°, Diagonal FOV 107.6° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Focus | Fixed |
DORI Distance (4mm Lens)
| Detect | Observe | Recognize | Identify |
|---|---|---|---|
| 56 m (184 ft) | 22 m (72 ft) | 11 m (36 ft) | 5 m (16 ft) |
Illuminator
| Specification | Details |
|---|---|
| Supplement Light Type | EXIR 2.0 Infrared |
| Supplement Light Range | Up to 30 m (98 ft) |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Specification | Details |
|---|---|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR, VBR |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Image Enhancement | BLC, 3D DNR |
| Privacy Mask | 4 programmable rectangle privacy masks |
Audio
| Specification | Details |
|---|---|
| Audio Features | Audio capable (model dependent) |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM |
Network
| Specification | Details |
|---|---|
| Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Security | Password protection, complicated password, watermark, authentication, IP address filter |
| Client | iVMS-4200, Hik-Connect |
| Simultaneous Live View | Up to 6 channels |
| Web Browser | Plug-in required: IE 10+; Plug-in free: Chrome 57.0+, Firefox 52.0+ |
Event Management
| Specification | Details |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP conflict, illegal login) |
| Linkage | Upload to FTP, notify surveillance center, send email |
General
| Specification | Details |
|---|---|
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W; PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal & Plastic |
| Dimensions | 177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″) |
| Weight | Approx. 270 g (0.6 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection Level | IP67 |
