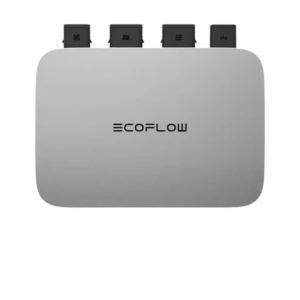

EcoFlow Solar Micro Inverter 800W

High-Efficiency Grid-Tie Solution

Maximize Your Solar Energy Harvest with Precision and Reliability

The 800W Solar Micro Inverter is engineered to optimize the performance of your photovoltaic (PV) system. Designed for seamless integration with up to two solar panels, this micro inverter ensures efficient energy conversion, real-time monitoring, and robust protection features, making it an ideal choice for residential and small commercial solar installations.

Key Features

• High Conversion Efficiency: Utilizes advanced Maximum Power Point Tracking (MPPT) technology to achieve up to 99.5% efficiency, ensuring maximum energy harvest from your solar panels.

• Flexible Input Range: Supports a wide DC input voltage range, accommodating various panel configurations and optimizing performance under different environmental conditions.

• Robust Communication: Equipped with Wi-Fi capabilities for real-time monitoring via mobile apps or PC browsers, allowing users to track performance and receive alerts remotely.

• Durable and Weather-Resistant: Constructed with a high-quality aluminum alloy shell and rated IP65 for water and dust resistance, ensuring longevity even in harsh outdoor environments.

• Safety and Protection: Features comprehensive protection mechanisms, including over/under voltage, over/under frequency, over-temperature, and islanding protection, safeguarding both the inverter and connected appliances.

Technical Specifications

• Model: HCMI-800

• DC Input:

  • Maximum Input Power: 800W

  • MPPT Voltage Range: 22V–48V

  • Operating Voltage Range: 20V–50V

  • Maximum Input Voltage: 52V

  • Startup Voltage: 18V

  • Maximum Input Current: 16A × 2

  • AC Output:

  • Rated Output Power: 800W

  • Nominal Output Voltage: 120V / 230V

  • Nominal Output Current: 5A @120V / 2.6A @230V

  • Nominal Output Frequency: 50Hz / 60Hz

  • Power Factor:

    0.99

  • Total Harmonic Distortion (THD): <5%

  • Efficiency:

  • MPPT Efficiency: 99.5%

  • Peak Efficiency: 95%

  • Mechanical Data:

  • Dimensions: 230mm × 200mm × 40mm

  • Weight: 2.45kg

  • Operating Temperature Range: -40°C to +65°C

  • Cooling Mode: Natural Convection (No Fans)

  • Ingress Protection Rating: IP65

• Communication: Wi-Fi (Cloud Monitoring)

• Installation: Plug-and-play design with integrated AC bus cable for easy setup.

Ideal Applications

• Residential Solar Systems: Enhance the efficiency of home solar installations by optimizing individual panel performance.

• Commercial Buildings: Suitable for small commercial setups aiming for reliable and efficient solar energy conversion.

• Remote Monitoring: Ideal for installations where real-time performance tracking is essential.

Note: The 800W Solar Micro Inverter is designed for grid-tie applications and requires connection to the utility grid. Ensure compliance with local regulations and standards during installation.

Delivery & Support

We at Ace Tech Pro LTD offer fast delivery options, 100% genuine product guarantee and customer support.

Order Now!

Order now at Ace Tech Pro LTD or visit our shop at Rahimtullah Trust Building 2nd Floor Shop 11 along Moi Avenue.
