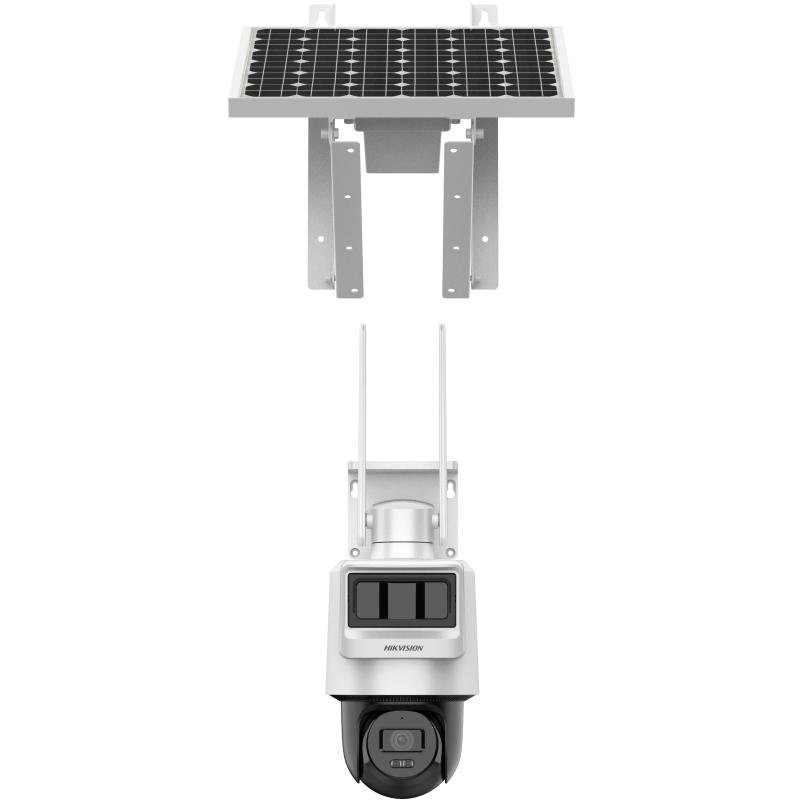

Hikvision DS-2DE2C200IWG-K/4G/C05S10 2MP Pro Solar-Powered PT Network Camera with 4G LTE
The Hikvision DS-2DE2C200IWG-K/4G/C05S10 2MP Pro Solar-Powered PT Network Camera with 4G LTE is a professional-grade 2 MP PT (Pan-Tilt) network camera featuring solar-powered operation combined with 4G LTE connectivity in a complete standalone kit. This innovative system includes a built-in rechargeable battery and solar panel, delivering truly autonomous surveillance for remote locations without access to power or wired networks. Featuring dual transducer technology with PIR and radar sensors working together for higher detection accuracy, this camera ensures reliable event triggering while minimizing false alarms. The 2 MP resolution captures clear Full HD footage, while the PT functionality allows for 340° pan and 80° tilt coverage. Ideal for construction sites, farms, remote properties, pipelines, and any location requiring flexible, self-sufficient security monitoring.
Key Features
2 MP High Definition Imaging: Captures clear Full HD footage with 2 MP resolution (1920 × 1080) for effective security monitoring and evidence-grade video quality.
Solar-Powered Autonomous Operation: Complete kit with high-capacity 50.76 Wh ternary lithium battery and solar panel provides up to 27 hours of runtime on a full charge without solar input, enabling true off-grid deployment.
4G LTE Connectivity: Built-in 4G LTE modem eliminates the need for wired network infrastructure, with regional frequency variants supporting LTE-FDD, LTE-TDD, and UMTS networks for flexible deployment anywhere with cellular coverage.
Dual Transducer Detection: PIR and radar sensors work together for higher detection accuracy, with manual radar angle adjustment (0°, 10°, and 20°) and detection range up to 12 meters.
PTZ Functionality: Pan movement from 0° to 340° and tilt from 0° to 80° with speeds up to 25°/s, providing comprehensive area coverage and flexible monitoring options.
EXIR Infrared Technology: Built-in IR illumination provides up to 30 meters of night vision with smart supplement light control and 850 nm wavelength.
Built-in Two-Way Audio: Integrated microphone and speaker enable real-time communication, remote intervention, and audio alarm capabilities with environment noise filtering.
On-Board Storage: microSD card slot supports up to 512 GB for local recording and edge storage, ensuring footage retention during network interruptions.
Weatherproof Durability: IP66 weatherproof rating ensures reliable operation in rain, dust, and outdoor conditions with operating temperature range from 0°C to 50°C and storage down to -30°C.
H.265+ Compression: Efficient video compression reduces bandwidth and storage requirements while maintaining high-quality video output.
Technical Specifications
Camera
| Specification | Details |
|---|---|
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 (2 MP) |
| Min. Illumination | Color: 0.01 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
Lens
| Specification | Details |
|---|---|
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 121° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Focus | Fixed |
DORI Distance (2.8mm Lens)
| Detect | Observe | Recognize | Identify |
|---|---|---|---|
| 45 m (148 ft) | 18 m (59 ft) | 9 m (30 ft) | 4 m (13 ft) |
PTZ
| Specification | Details |
|---|---|
| Movement Range (Pan) | 0° to 340° |
| Movement Range (Tilt) | 0° to 80° |
| Pan Speed | Up to 25°/s |
| Tilt Speed | Up to 25°/s |
Illuminator
| Specification | Details |
|---|---|
| Supplement Light Type | EXIR Infrared |
| Supplement Light Range | Up to 30 m (98 ft) |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Transducer (PIR + Radar)
| Specification | Details |
|---|---|
| Transducer Type | PIR + Radar (dual transducers) |
| Detection Angle | Horizontal: 80°, Vertical: 30° |
| Detection Range | Up to 12 m (39 ft) |
| Radar Angle Adjustment | Manual: 0°, 10°, and 20° |
Video
| Specification | Details |
|---|---|
| Main Stream | 50 Hz: 12.5 fps (1920 × 1080, 1280 × 720); 60 Hz: 15 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 12.5 fps (640 × 480, 640 × 360); 60 Hz: 15 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Specification | Details |
|---|---|
| Audio Features | Built-in microphone and speaker, Mono sound, two-way audio |
| Audio Compression | G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC |
| Audio Bit Rate | 16 Kbps (G.722.1)/64 Kbps (G.711ulaw/G.711alaw)/32~160 Kbps (MP2L2)/8~48 Kbps (PCM)/16 Kbps (G.726)/16~64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Yes |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 95 dB at 10 cm |
Mobile Communication (4G LTE)
| Specification | Details |
|---|---|
| Standard | LTE-FDD, LTE-TDD, UMTS |
| Frequency (EU Model) | LTE-FDD: B1/3/5/7/8/20/28 |
| Frequency (NA Model) | LTE-FDD: B2/4/5/12/13/17/66/71; UMTS: B2/4/5 |
| Data Rate (EU/IN/LA) | Uplink: 5.1 Mbps, Downlink: 10.3 Mbps |
| Data Rate (NA) | Uplink: 50 Mbps, Downlink: 150 Mbps |
| SIM Card Type | Nano SIM |
Network
| Specification | Details |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port (for debugging) |
| Protocols | TCP/IP, DHCP, IPv4 |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Security | Password protection, complicated password, HTTP authentication, TLS 1.1/1.2/1.3 |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Client | Hik-Connect, HikCentral Professional, Hik-Partner Pro |
| Web Browser | Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Battery
| Specification | Details |
|---|---|
| Battery Type | Ternary Lithium |
| Capacity | 50.76 Wh |
| Cycle Lifetime | 27 hours (at 1.85W power consumption) full charge runtime without solar input |
| Battery Voltage | 9 V to 12.6 V |
| Max. Charging Voltage | 12.6 V |
| Charging Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Discharging Temperature | -20 °C to 55 °C (-4 °F to 131 °F) |
| Battery Life | More than 800 cycles |
Power
| Specification | Details |
|---|---|
| Power Consumption (Typical) | 1.85 W (4G working) |
| Power Consumption (Standby) | 80 mW |
| Power Consumption (Max) | 7 W |
| Power Supply | 12 VDC ± 25% (for debugging only); Solar panels: 10 W (±5%) |
| Power Interface | Four-core aviation connector for solar panel |
Interface
| Specification | Details |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port (debugging) |
| On-Board Storage | microSD/microSDHC/microSDXC card slot, up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker |
| Reset Key | Yes |
Event Management
| Specification | Details |
|---|---|
| Basic Event | Motion detection (with human/vehicle classification), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording/capture, audible warning |
General
| Specification | Details |
|---|---|
| Material | Plastic |
| Dimensions | 133.1 mm × 177.64 mm × 382.44 mm / 412.44 mm (5.24″ × 6.99″ × 15.06″ / 16.24″) |
| Package Dimensions | 375 mm × 305 mm × 398 mm (14.76″ × 12.01″ × 15.67″) |
| Weight | Approx. 850 g (1.87 lb.) |
| With Package Weight | Approx. 4700 g (10.34 lb.) |
| Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F); Humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Protection Level | IP66 |
