HikVision Access Control Terminal DS-K1T502DBFWX-C

HikVision Access Control Terminal DS-K1T502DBFWX-C

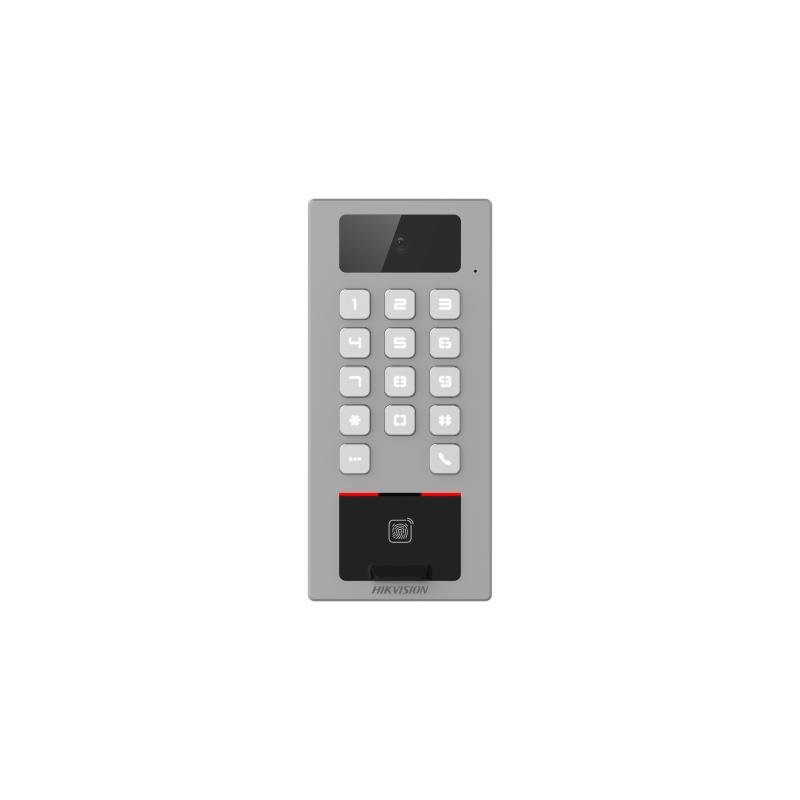

The DS-K1T502DBFWX-C is a powerful and versatile access control terminal designed to provide secure and efficient entry management for offices, residential buildings, industrial facilities, and commercial environments. It integrates multiple authentication methods, video intercom capability, and intelligent access control features into a single device, making it a comprehensive security solution for modern access systems.

With a durable design, built-in camera, and flexible connectivity options, the terminal allows organizations to manage and monitor entry points effectively while ensuring reliable performance and enhanced security.

Key Features

Multiple Authentication Methods

The DS-K1T502DBFWX-C supports a variety of authentication methods, allowing users to gain access through fingerprint recognition, RFID cards, PIN codes, QR codes, or Bluetooth credentials. This flexibility makes it suitable for organizations that require different access levels and secure verification methods.

High User Capacity

The terminal is designed for medium to large installations and can store a large number of users and records:

• Fingerprint Capacity: Up to 10,000 fingerprints

• Card Capacity: Up to 100,000 cards

• Event Records: Up to 300,000 events

This large storage capacity allows administrators to manage access efficiently without frequent data clearing.

Built-in Camera and Video Intercom

Equipped with a 2-megapixel camera, the device supports video intercom functionality. Users can communicate with indoor stations or management centers before access is granted, improving security at entry points.

Two-Way Audio Communication

The integrated microphone and speaker enable real-time communication between visitors and administrators. This feature is particularly useful in office buildings, apartments, and controlled-access areas.

Advanced Connectivity Options

The device offers flexible connectivity for integration with existing security systems:

• TCP/IP network connection

• Built-in Wi-Fi

• RS-485 communication interface

• Wiegand input/output

These connectivity options allow the terminal to work with controllers, card readers, and centralized management systems.

Remote Management Capability

Administrators can manage the device remotely using compatible access control management software. This allows monitoring of entry logs, configuration of access permissions, and remote door control.

Built-in Access Control Controller

The terminal includes a built-in controller capable of handling:

• Door lock control

• Exit button connection

• Door sensor monitoring

• Alarm input and output

This enables the device to function as a standalone access control system without requiring an additional controller.

Durable Outdoor Design

The DS-K1T502DBFWX-C is built to withstand demanding environments. Its IP65 rating protects the device from dust and water, while the IK09 vandal-resistant structure ensures durability in high-traffic or exposed locations.

Large Storage Expansion

A microSD card slot supporting up to 256 GB allows additional local storage for system logs and recordings, ensuring reliable data retention.

Technical Specifications

• Camera: 2 MP

• Display: 5-inch capacitive touchscreen

• Fingerprint Capacity: 10,000

• Card Capacity: 100,000

• Event Storage: 300,000 records

• Authentication Methods: Fingerprint, Card, PIN, QR Code, Bluetooth

• Network: TCP/IP, Wi-Fi

• Interfaces: RS-485, Wiegand, alarm input/output

• Power Supply: 12–24 V DC

• Power Consumption: ≤12 W

• Operating Temperature: −40°C to +70°C

• Protection Rating: IP65 / IK09

• Storage: MicroSD card up to 256 GB

Applications

The DS-K1T502DBFWX-C Access Control Terminal is ideal for:

• Corporate offices and commercial buildings

• Residential apartments and gated communities

• Industrial facilities and warehouses

• Educational institutions and campuses

• Government and high-security environments

The DS-K1T502DBFWX-C Access Control Terminal delivers a powerful combination of biometric authentication, video intercom capability, and robust connectivity. With high user capacity, durable outdoor design, and flexible authentication options, it provides an efficient and reliable solution for modern access control systems.
