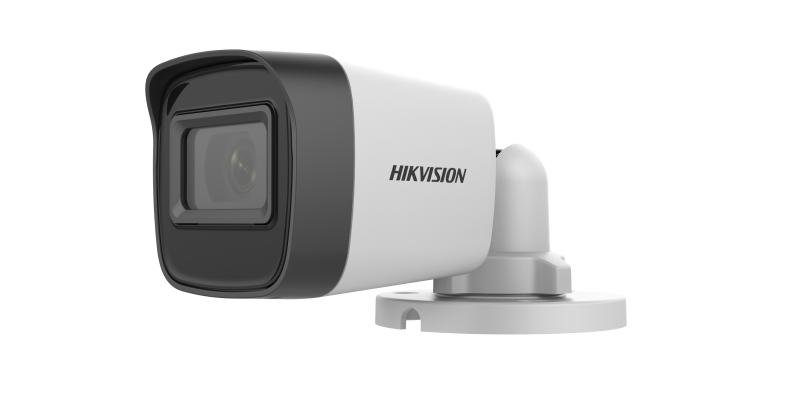

Hikvision 5 MP Fixed Mini Bullet Camera (DS-2CE16H0T-ITPF(3.6MM)(C))

Elevate your security system with the Hikvision 5 MP Fixed Mini Bullet Camera, a high-resolution analog surveillance solution designed for professional-grade monitoring. Delivering crisp 5-megapixel video with exceptional clarity, this camera ensures you capture every critical detail. Engineered for outdoor use, it features Hikvision’s EXIR night vision technology and a durable IP67 weatherproof housing, providing reliable, round-the-clock protection for homes, businesses, and industrial sites .

Model: DS-2CE16H0T-ITPF(3.6MM)(C)
Category: Security / Analog Surveillance Cameras

Key Features at a Glance

• 5 MP High-Definition Video: Captures detailed footage with a 2560 × 1944 resolution, providing superior image clarity compared to standard 1080p cameras .

• EXIR Night Vision: Equipped with up to 20 meters of EXIR infrared illumination, ensuring bright and clear images in total darkness .

• 4-in-1 Switchable Output: Offers versatile compatibility by supporting four video formats: TVI, AHD, CVI, and CVBS (analog) .

• IP67 Weatherproof Rating: Built with a durable plastic housing to withstand rain, dust, and extreme outdoor temperatures .

• Fixed 3.6mm Lens: Provides an 82° horizontal field of view, ideal for monitoring entryways, driveways, and targeted areas .

• 24/7 Operation in Extreme Conditions: Engineered to operate reliably in temperatures ranging from -40°C to 60°C (-40°F to 140°F) .

• Low Power Consumption: Energy-efficient design with a maximum power draw of only 3.8W .

• 3-Axis Adjustment: Pan, tilt, and rotate adjustments for precise positioning during installation .

Detailed Description

High-Quality 5 MP Imaging

The DS-2CE16H0T-ITPF utilizes a high-performance 5 MP CMOS image sensor to deliver exceptional 5-megapixel HD video . With a resolution of 2560 × 1944 pixels, it captures significantly more detail than standard 2 MP cameras, allowing for clearer identification of faces, license plates, and other critical details . With a minimum illumination of just 0.01 Lux, it performs well in low-light conditions, automatically switching to black-and-white mode and activating its infrared LEDs to maintain visibility in complete darkness .

20m EXIR Night Vision

Hikvision’s exclusive EXIR technology provides superior infrared illumination. Unlike standard IR, EXIR optimizes the angle and distribution of light for a more uniform and brighter night image . With an IR range of up to 20 meters (65 feet), this camera ensures your property is monitored effectively, from the driveway to the backyard, long after the sun goes down .

4-in-1 Versatility (TVI/AHD/CVI/CVBS)

This camera offers maximum flexibility for system integration. It features a single port that outputs four switchable HD analog signals . Whether your Digital Video Recorder (DVR) supports HDTVI, AHD, HDCVI, or traditional CVBS analog, this camera is compatible, making it an excellent choice for both new installations and upgrades to existing analog systems .

Rugged Outdoor Durability

Built to face the elements, the camera boasts an IP67 ingress protection rating . This means it is completely protected against dust ingress and can withstand immersion in water, making it impervious to heavy rain, snow, and dust . Its robust plastic housing is designed to endure harsh outdoor environments, operating flawlessly in conditions from extreme freezing cold to blistering heat (-40°C to 60°C) .

Precise 3.6mm Lens

This specific model comes with a fixed 3.6 mm lens, offering a horizontal field of view of 82°, a vertical field of view of 60°, and a diagonal field of view of 110° . This makes it perfectly suited for monitoring targeted areas such as doorways, hallways, driveways, or specific zones of a property .

Flexible Installation

Installation is simplified by the camera’s 3-axis adjustment mechanism, allowing installers to pan 360°, tilt 78°, and rotate 360° to achieve the perfect viewing angle regardless of the mounting surface . The compact dimensions (163.2 mm × 65.7 mm × 63.9 mm) and lightweight design (approximately 250 g) make it easy to mount on walls, eaves, or ceilings .

Advanced Image Enhancement

To ensure the highest quality footage, the camera includes several image processing features :

• DWDR (Digital Wide Dynamic Range): Balances exposure in high-contrast scenes, allowing you to see details in both bright and shadowed areas simultaneously .

• 2D DNR (Digital Noise Reduction): Minimizes image noise and grain, particularly in low-light conditions, resulting in cleaner and more efficient video .

• Smart IR: Prevents overexposure of nearby objects, ensuring that close-up images remain clear and identifiable at night .

• Adjustable Settings: Brightness, sharpness, mirror, and AGC can be customized via the DVR interface .

Energy-Efficient Operation

The camera is designed for low power consumption, with a maximum draw of only 3.8W when powered by a 12 VDC ± 25% supply . It supports power supply ranges from 6 VDC to 15 VDC, offering flexibility for various installation scenarios .

Technical Specifications

General

• Model Number: DS-2CE16H0T-ITPF(3.6MM)(C)

• Product Type: Outdoor EXIR Fixed Mini Bullet Camera

• Image Sensor: 5 MP CMOS

• Signal System: PAL / NTSC (Switchable)

• Material: Plastic Housing

• Dimensions: 163.2 mm × 65.7 mm × 63.9 mm (6.43″ × 2.59″ × 2.52″)

• Weight: Approx. 250 g (0.55 lb)

Camera & Lens

• Max. Resolution: 2560 (H) × 1944 (V)

• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

• Day & Night: IR Cut Filter

• Lens Type: 3.6 mm Fixed Lens

• Lens Mount: M12

• Field of View (3.6mm): Horizontal: 82°, Vertical: 60°, Diagonal: 110°

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 78°, Rotation: 0° to 360°

Illumination

• IR Range: Up to 20 m (65 ft)

• Supplement Light Type: EXIR (Smart IR)

• Smart IR: Yes


• Frame Rate: TVI: 5 MP @ 20 fps; AHD/CVI: 5 MP @ 20 fps; CVBS: PAL/NTSC

• Wide Dynamic Range (WDR): DWDR

• Noise Reduction: 2D DNR

• White Balance: Auto

• AGC: Yes

• Image Settings: Brightness, Sharpness, Mirror, AGC

Interface & Electrical

• Video Output: Switchable TVI / AHD / CVI / CVBS

• Communication Protocol: HIKVISION-C

• Power Supply: 12 VDC ± 25%

• Power Consumption: Max. 3.8 W

• Operating Voltage Range: 6 VDC to 15 VDC

Environmental

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

• Protection Level: IP67 (Dust-tight and waterproof)
