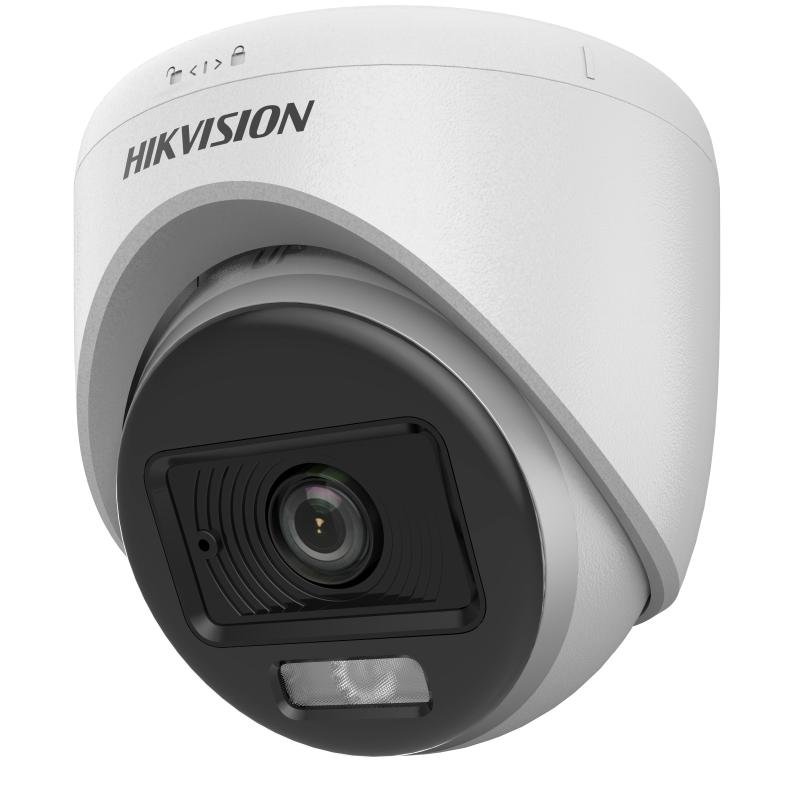

Hikvision 3K ColorVu Smart Hybrid Light Indoor Fixed Turret Camera (DS-2CE70KF0T-LPFS / 2.8mm)

Experience the pinnacle of indoor surveillance with the Hikvision 3K ColorVu Smart Hybrid Light Indoor Fixed Turret Camera (DS-2CE70KF0T-LPFS / 2.8mm), a premium analog security solution combining ultra-high definition 3K resolution with revolutionary ColorVu technology. Featuring an exceptional F1.0 super aperture and advanced Smart Hybrid Light illumination, this camera delivers stunning full-color video 24 hours a day—even in complete darkness. With built-in audio, flexible night vision options, and a discreet turret design, it sets a new standard for professional-grade indoor security in homes, offices, retail stores, and commercial facilities.

Model: DS-2CE70KF0T-LPFS(2.8MM)

Key Features at a Glance

• 3K Ultra-High Definition Video: Captures exceptional detail with 3072 × 2048 (6MP) resolution, delivering superior image clarity for accurate identification of faces, objects, and activities.

• 24/7 ColorVu Imaging: F1.0 super aperture enables stunning full-color video even in extremely low-light conditions without switching to black and white.

• Smart Hybrid Light Technology: Integrates both IR and white light illumination with three flexible lighting modes—IR light for covert surveillance, white light for full-color night vision, or Smart mode for automatic switching based on scene conditions.

• 20m White Light Range: Provides powerful, full-color night imaging with white light illumination up to 20 meters for comprehensive indoor coverage.

• Built-in Microphone: High-quality audio capture with audio over coaxial cable, eliminating the need for separate audio wiring.

• 4-in-1 Switchable Output: Versatile compatibility supporting four video formats: TVI, AHD, CVI, and CVBS (analog).

• Wide-Angle 2.8mm Lens: Provides a 106° horizontal field of view, ideal for monitoring broad indoor areas like lobbies, hallways, and open spaces.

• Discreet Turret Design: Low-profile, dome-style housing blends seamlessly with indoor décor while deterring tampering.

• Easy Installation: 3-axis adjustment mechanism (pan, tilt, and rotate) for precise positioning during setup.

• Long Transmission Distance: Up to 800 meters for HD analog video transmission over coaxial cable.

• Low Power Consumption: Energy-efficient design with a maximum power draw of only 3.1W.

Detailed Description

Exceptional 3K Resolution with ColorVu Technology

The DS-2CE70KF0T-LPFS represents the pinnacle of analog indoor surveillance technology, combining 3K ultra-high definition resolution with Hikvision’s revolutionary ColorVu imaging. With 3072 × 2048 (6MP) resolution, this camera captures nearly three times the detail of standard 1080p cameras, enabling clear identification of critical details like faces, clothing, and objects even across larger indoor spaces.

The integrated ColorVu technology, powered by an exceptional F1.0 super aperture, allows significantly more light to reach the image sensor than conventional cameras. This means you get vibrant, true-to-life color video around the clock—even in near-total darkness—without ever switching to black-and-white mode. With a minimum illumination of just 0.003 Lux (F1.0, AGC ON), this camera performs exceptionally well in challenging low-light environments.

Smart Hybrid Light Technology

This camera features Hikvision’s advanced Smart Hybrid Light system, integrating both infrared and white light LEDs for comprehensive night vision flexibility:

• IR Mode: Provides discreet surveillance with infrared illumination—ideal for covert monitoring where visible light is undesirable.

• White Light Mode: Activates the powerful built-in white LEDs for stunning full-color night vision, allowing you to capture identifying details like clothing colors and object descriptions in low-light conditions.

• Smart Mode: Automatically switches between IR and white light based on scene conditions and motion, optimizing both visibility and active deterrence.

The white light illumination provides an exceptional range of up to 20 meters, ensuring comprehensive coverage of indoor spaces after dark. The white light also serves as a powerful visual deterrent when needed.

Built-in Audio Surveillance

Unlike standard analog cameras, this premium model includes a built-in microphone for high-quality audio capture. The audio is transmitted over the same coaxial cable as the video signal, eliminating the need for separate audio wiring and simplifying installation. The microphone has a pickup distance of up to 5 meters, providing clear audio monitoring of your property and enabling you to hear what’s happening as well as see it in stunning 3K color.

4-in-1 Versatility (TVI/AHD/CVI/CVBS)

This camera offers maximum flexibility for system integration with a single port that outputs four switchable HD analog signals. Whether your Digital Video Recorder (DVR) supports HDTVI, AHD, HDCVI, or traditional CVBS analog, this camera is compatible, making it an excellent choice for both new installations and upgrades to existing analog systems requiring premium image quality.

Wide-Angle 2.8mm Lens

This specific model comes with a fixed 2.8mm lens, offering a wide horizontal field of view of 106°, a vertical field of view of 56°, and a diagonal field of view of 124°. This wide-angle perspective makes it perfectly suited for monitoring broad indoor areas such as lobbies, reception areas, open offices, retail floors, classrooms, conference rooms, and large hallways, ensuring comprehensive coverage with fewer cameras.

Discreet Turret Design

The camera features a low-profile turret (dome) design that blends discreetly with any indoor environment. The sleek, rounded housing is less intrusive than traditional bullet cameras and helps deter tampering by making the camera’s viewing direction less obvious. The compact dimensions (Φ 110.9 mm × 86.3 mm) allow for versatile placement on ceilings or walls.

Easy Installation with 3-Axis Adjustment

Installation is simplified by the camera’s 3-axis adjustment mechanism, allowing installers to pan 0° to 360°, tilt 0° to 75°, and rotate 0° to 360° to achieve the perfect viewing angle regardless of the mounting surface. The turret design allows for flush ceiling mounting or wall mounting, providing flexibility for various indoor applications.

Extended Transmission Distance

The camera supports long-distance video transmission over coaxial cable—up to 800 meters for HD analog signals. This makes it ideal for larger indoor facilities, warehouses, educational campuses, hospitals, and multi-story buildings where cameras may be located far from the recording equipment.

Advanced Image Enhancement

To ensure the highest quality footage, the camera includes several sophisticated image processing features:

• 3D DNR (Digital Noise Reduction): Minimizes image noise and grain, particularly in low-light conditions, resulting in cleaner video and more efficient storage.

• Digital WDR (Wide Dynamic Range): Balances exposure in high-contrast scenes, allowing you to see details in both bright and shadowed areas simultaneously.

• DWDR / BLC / HLC / Global: Multiple image enhancement options for optimized video quality in various lighting conditions.

• Adjustable Settings: Brightness, sharpness, anti-banding, and AGC can be customized via the DVR interface.

Image Parameter Modes

The camera offers three selectable image parameter modes for different applications:

• STD (Standard): Balanced image quality for general surveillance

• HIGH-SAT (High Saturation): Enhanced color vibrancy for more vivid footage

• HIGHLIGHT: Optimized for scenes with bright lighting conditions

Energy-Efficient Operation

The camera is designed for efficient operation, with a maximum power draw of only 3.1W when powered by a 12 VDC ± 25% supply. Hikvision recommends using one power adapter per camera for optimal performance.

Technical Specifications

General

• Model Number: DS-2CE70KF0T-LPFS

• Product Type: Indoor 3K ColorVu Smart Hybrid Light Fixed Turret Camera

• Image Sensor: 3K CMOS

• Signal System: PAL / NTSC (Switchable)

• Material: Plastic Housing

• Dimensions: Φ 110.9 mm × 86.3 mm (Φ 4.37″ × 3.40″)

• Weight: Approx. 250 g (0.55 lb.)

Camera & Lens

• Max. Resolution: 3072 (H) × 2048 (V) (6MP)

• Min. Illumination: 0.003 Lux @ (F1.0, AGC ON), 0 Lux with white light

• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

• Day & Night: ICR (Infrared Cut Filter)

• Lens Type: 2.8 mm Fixed Focal Lens

• Lens Mount: M12

• Aperture: F1.0

• Field of View (2.8mm): Horizontal: 106°, Vertical: 56°, Diagonal: 124°

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Audio

• Built-in Microphone: Yes (1)

• Pickup Distance: Up to 5 m

• Audio Transmission: Audio over coaxial cable

Illumination

• Supplement Light Type: Smart, IR, White Light (Smart Hybrid)

• Supplement Light Range: White Light: Up to 20 m

• Smart Supplement Light: Yes


• Frame Rate: TVI: 3K @ 15 fps; AHD/CVI: 3K @ 15 fps; CVBS: PAL/NTSC

• Wide Dynamic Range (WDR): Digital WDR

• Image Enhancement: 3D DNR, BLC, HLC, Global

• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT

• Day/Night Mode: Auto/Color/BW

• White Balance: Auto, Manual

• AGC: Yes

• Image Settings: Brightness, Sharpness, Anti-banding

Interface

• Video Output: 1 HD analog output (switchable TVI/AHD/CVI/CVBS)

• Communication: HIKVISION-C

• Transmission Distance: Up to 800 m for HD analog video

Electrical

• Power Supply: 12 VDC ± 25%

• Power Consumption: Max. 3.1 W

• Recommended Power: Use one power adapter per camera

Environmental

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

• Protection Level: Suitable for indoor use only

Delivery & Support
