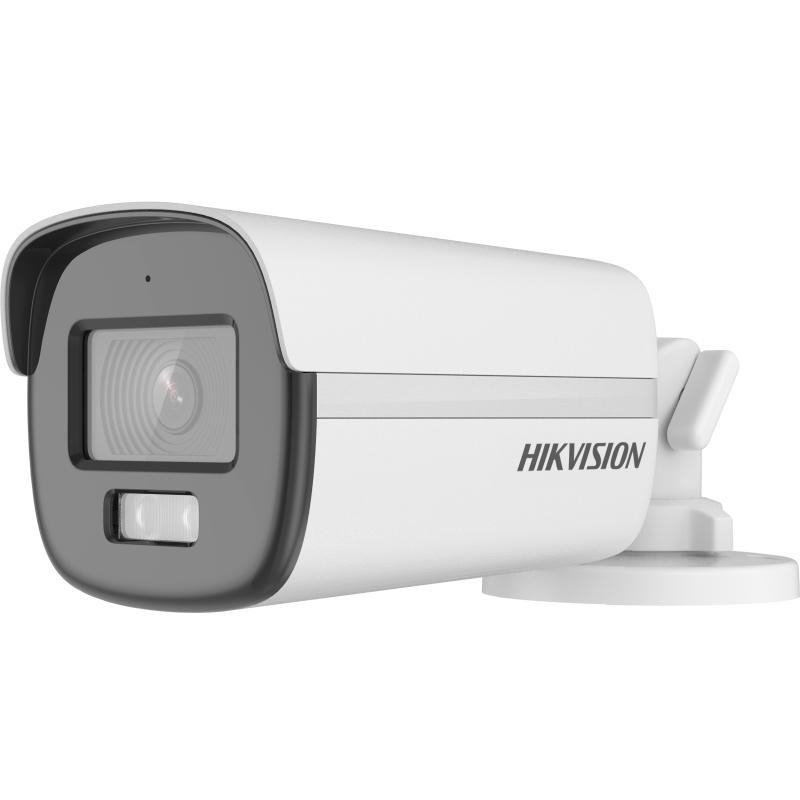

Hikvision 3K ColorVu Smart Hybrid Light Fixed Bullet Camera (DS-2CE12KF0T-LFS / 3.6mm)

Experience revolutionary full-color surveillance with the Hikvision 3K ColorVu Smart Hybrid Light Fixed Bullet Camera (DS-2CE12KF0T-LFS / 3.6mm), a premium analog security solution designed for critical monitoring applications where detail and color accuracy are paramount. Featuring an exceptional F1.0 super aperture and advanced ColorVu technology, this camera delivers stunning 3K resolution video with vibrant full-color imaging 24 hours a day. With Smart Hybrid Light illumination, built-in audio, and rugged IP67 construction, it sets a new standard for professional-grade security.

Model: DS-2CE12KF0T-LFS(3.6MM)
Category: Security / Analog Surveillance Cameras

Key Features

• 3K Ultra-High Definition Video: Captures exceptional detail with 3072 × 2048 (6MP) resolution, delivering superior image clarity for accurate identification of faces, vehicles, and objects.

• 24/7 ColorVu Imaging: F1.0 super aperture enables stunning full-color video even in extremely low-light conditions without switching to black and white.

• Smart Hybrid Light Technology: Integrates both IR and white light illumination with three flexible lighting modes—IR light for covert surveillance, white light for full-color night vision, or Smart mode for automatic switching based on scene conditions.

• 30m White Light Range: Provides powerful, full-color night imaging with white light illumination up to 30 meters.

• Built-in Microphone: High-quality audio capture with audio over coaxial cable, eliminating the need for separate audio wiring.

• 4-in-1 Switchable Output: Versatile compatibility supporting four video formats: TVI, AHD, CVI, and CVBS (analog).

• IP67 Weatherproof Rating: Durable metal housing with plastic components withstands rain, dust, and extreme temperatures from -40°C to 60°C.

• Advanced Image Enhancement: 3D DNR, DWDR, BLC, HLC, and Global image enhancement for optimized video quality.

• 3-Axis Adjustment: Pan 360°, tilt 90°, and rotate 360° for precise positioning during installation.

• Long Transmission Distance: Up to 800 meters for HD analog video transmission over coaxial cable.

Detailed Description

Exceptional 3K Resolution with ColorVu Technology

The DS-2CE12KF0T-LFS represents the pinnacle of analog surveillance technology, combining 3K ultra-high definition resolution with Hikvision’s revolutionary ColorVu imaging. With 3072 × 2048 (6MP) resolution, this camera captures nearly three times the detail of standard 1080p cameras, enabling clear identification of critical details like faces, license plates, and clothing even at a distance.

The integrated ColorVu technology, powered by an exceptional F1.0 super aperture, allows significantly more light to reach the image sensor than conventional cameras. This means you get vibrant, true-to-life color video around the clock—even in near-total darkness—without ever switching to black-and-white mode. With a minimum illumination of just 0.003 Lux (F1.0, AGC ON), this camera performs exceptionally well in challenging low-light environments.

Smart Hybrid Light Technology

This camera features Hikvision’s advanced Smart Hybrid Light system, integrating both infrared and white light LEDs for comprehensive night vision flexibility:

• IR Mode: Provides discreet surveillance with infrared illumination—ideal for covert monitoring where visible light is undesirable.

• White Light Mode: Activates the powerful built-in white LEDs for stunning full-color night vision, allowing you to capture identifying details like clothing colors and vehicle descriptions in low-light conditions.

• Smart Mode: Automatically switches between IR and white light based on scene conditions and motion, optimizing both visibility and active deterrence.

The white light illumination provides an exceptional range of up to 30 meters, ensuring comprehensive coverage of large properties, parking areas, and perimeter zones after dark. The white light also serves as a powerful visual deterrent, startling potential intruders and illuminating the area for clear footage.

Built-in Audio Surveillance

Unlike standard analog cameras, this premium model includes a built-in microphone for high-quality audio capture. The audio is transmitted over the same coaxial cable as the video signal, eliminating the need for separate audio wiring and simplifying installation. The microphone has a pickup distance of approximately 5 meters, providing clear audio monitoring of your property and enabling you to hear what’s happening as well as see it in stunning 3K resolution.

4-in-1 Versatility (TVI/AHD/CVI/CVBS)

This camera offers maximum flexibility for system integration with a single port that outputs four switchable HD analog signals. Whether your Digital Video Recorder (DVR) supports HDTVI, AHD, HDCVI, or traditional CVBS analog, this camera is compatible, making it an excellent choice for both new installations and upgrades to existing analog systems requiring premium image quality.

Extended Transmission Distance

The camera supports long-distance video transmission over coaxial cable—up to 800 meters for HD analog signals. This makes it ideal for large properties, warehouses, industrial sites, and perimeter security applications where cameras may be located far from the recording equipment.

Rugged Outdoor Durability

Built to face the elements, the camera boasts an IP67 ingress protection rating, meaning it is completely protected against dust ingress and can withstand immersion in water. This makes it impervious to heavy rain, snow, and dust. The durable metal housing with plastic components is designed to endure harsh outdoor environments, operating flawlessly in conditions from extreme freezing cold to blistering heat (-40°C to 60°C).

Precise 3.6mm Lens

This specific model comes with a fixed 3.6mm lens, offering a horizontal field of view of approximately 86°, a vertical field of view of approximately 46°, and a diagonal field of view of approximately 103°. This makes it perfectly suited for monitoring targeted areas such as entryways, driveways, parking areas, or specific zones of a property. The F1.0 aperture ensures exceptional low-light performance.

Flexible Installation

Installation is simplified by the camera’s 3-axis adjustment mechanism, allowing installers to pan 360°, tilt 90°, and rotate 360° to achieve the perfect viewing angle regardless of the mounting surface. The compact, professional design with metal housing makes it easy to mount on walls, eaves, poles, or ceilings.

Advanced Image Enhancement

To ensure the highest quality footage, the camera includes several sophisticated image processing features:

• 3D DNR (Digital Noise Reduction): Minimizes image noise and grain, particularly in low-light conditions, resulting in cleaner video and more efficient storage.

• DWDR (Digital Wide Dynamic Range): Balances exposure in high-contrast scenes, allowing you to see details in both bright and shadowed areas simultaneously.

• BLC (Backlight Compensation) / HLC (Highlight Compensation): Optimizes image quality in challenging lighting conditions like direct sunlight or headlights.

• Global Image Enhancement: Comprehensive processing for balanced, natural-looking video in all conditions.

• Adjustable Settings: Brightness, sharpness, and other parameters can be customized via the DVR interface.

Image Parameter Modes

The camera offers multiple image parameter modes for different applications:

• STD (Standard): Balanced image quality for general surveillance

• HIGH-SAT (High Saturation): Enhanced color vibrancy for more vivid footage

Energy-Efficient Operation

The camera is designed for efficient operation, with low power consumption when powered by a 12 VDC ± 25% supply. Hikvision recommends using one power adapter per camera for optimal performance.

Technical Specifications

General

• Model Number: DS-2CE12KF0T-LFS

• Product Type: Outdoor 3K ColorVu Smart Hybrid Light Fixed Bullet Camera

• Image Sensor: 3K CMOS

• Signal System: PAL / NTSC (Switchable)

• Material: Metal + Plastic Housing

• Dimensions: 175 mm × 69 mm × 67.7 mm (6.89″ × 2.72″ × 2.67″)

• Weight: Approx. 350 g (0.77 lb.)

Camera & Lens

• Max. Resolution: 3072 (H) × 2048 (V) (6MP)

• Min. Illumination: 0.003 Lux @ (F1.0, AGC ON), 0 Lux with white light

• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

• Day & Night: ICR (Infrared Cut Filter)

• Lens Type: 3.6 mm Fixed Focal Lens

• Lens Mount: M12

• Aperture: F1.0

• Field of View (3.6mm): Horizontal: 86°, Vertical: 46°, Diagonal: 103° (approximate)

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Audio

• Built-in Microphone: Yes (1)

• Pickup Distance: Up to 5 m

• Audio Transmission: Audio over coaxial cable

Illumination

• Supplement Light Type: Smart, IR, White Light (Smart Hybrid)

• Supplement Light Range: White Light: Up to 30 m

• Smart Supplement Light: Yes


• Frame Rate: TVI: 3K @ 15 fps; AHD/CVI: 3K @ 15 fps; CVBS: PAL/NTSC

• Wide Dynamic Range (WDR): DWDR

• Image Enhancement: 3D DNR, BLC, HLC, Global

• Image Parameters Switch: STD/HIGH-SAT

• Day/Night Mode: Auto/Color/BW

• White Balance: Auto, Manual

• Image Settings: Brightness, Sharpness

Interface

• Video Output: 1 HD analog output (switchable TVI/AHD/CVI/CVBS)

• Communication: HIKVISION-C

• Transmission Distance: Up to 800 m for HD analog video

Electrical

• Power Supply: 12 VDC ± 25%

• Power Consumption: Low power consumption design

• Recommended Power: Use one power adapter per camera

Environmental

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

• Protection Level: IP67 (Dust-tight and waterproof)
