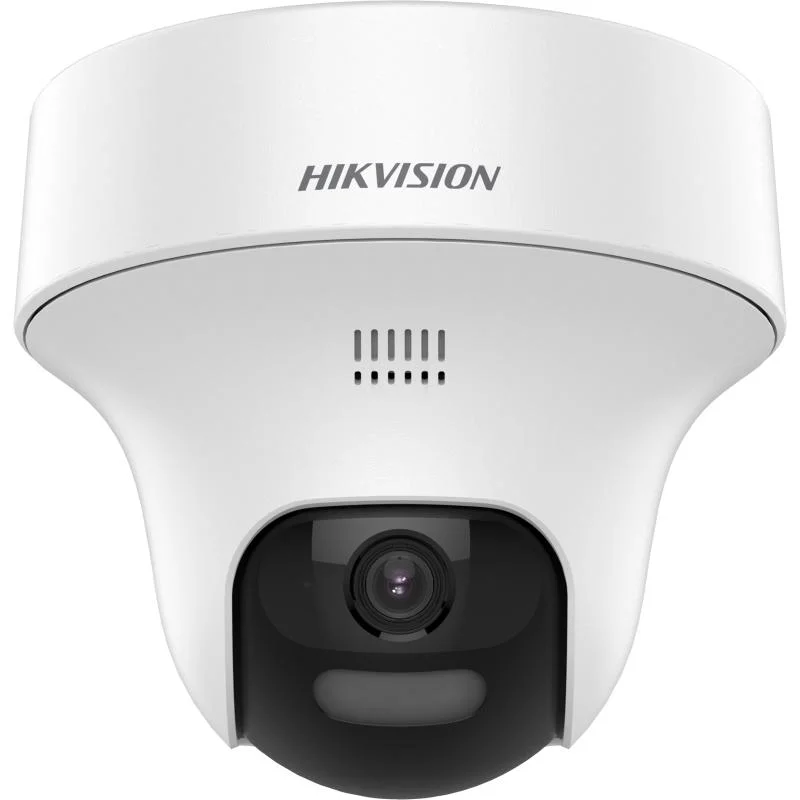

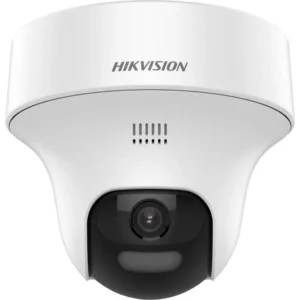

Hikvision 2MP Smart Hybrid Light & Siren PT Turret Camera with Two-Way Audio (DS-2CE70D0T-PTLXTS / 2.8mm)

Elevate your security system with the Hikvision 2MP Smart Hybrid Light & Siren PT Turret Camera with Two-Way Audio (DS-2CE70D0T-PTLXTS / 2.8mm), part of the revolutionary Turbo HD 8.0 series. This advanced analog surveillance solution combines high-definition 2MP imaging with interactive features for comprehensive security management. Featuring motorized pan and tilt capabilities, two-way audio, a built-in siren with active strobe lights, and Smart Hybrid Light technology, this camera enables real-time communication and active deterrence. With 350° pan and 100° tilt coverage, it provides extensive monitoring of indoor and covered outdoor areas for homes, businesses, and commercial facilities.

Model: DS-2CE70D0T-PTLXTS(2.8mm)(O-STD)

Key Features

• 2MP High-Definition Video: Captures clear, detailed footage with 1920 × 1080 resolution for accurate identification of people and objects.

• Motorized Pan & Tilt Functionality: Provides 350° horizontal pan and 100° vertical tilt for extensive coverage and the ability to adjust viewing angles remotely.

• Built-in Two-Way Audio: Integrated microphone and 2W speaker enable real-time communication with visitors, delivery personnel, or potential intruders.

• Active Strobe Light & Siren Alarm: Red and blue flashing lights combined with an audio alarm provide powerful visual and audible deterrence against unwanted activity.

• Smart Hybrid Light Technology: Choose between IR mode for covert surveillance or white light mode for full-color night vision, with up to 25m IR range and 20m white light range.

• Advanced Audio Processing: Features echo cancellation, AI noise reduction, and automatic gain control for crystal-clear voice transmission.

• 4-in-1 Switchable Output: Versatile compatibility supporting four video formats: TVI, AHD, CVI, and CVBS (analog).

• Wide-Angle 2.8mm Lens: Provides a 105° horizontal field of view, ideal for monitoring broad areas.

• Weather-Resistant Design: Operating temperature range of -40°C to 60°C for reliable performance in various environments.

• Long Transmission Distance: Up to 800 meters for HD analog video transmission over coaxial cable.

Detailed Description

High-Quality 2MP Imaging

The DS-2CE70D0T-PTLXTS utilizes a high-performance 2MP CMOS image sensor to deliver detailed and clear 1080p HD video at up to 30 frames per second. With 1920 × 1080 resolution, it captures crisp footage suitable for identifying faces, objects, and activities within indoor and covered outdoor environments. With a minimum illumination of just 0.01 Lux (F1.6, AGC ON), it performs well in low-light conditions, automatically switching to IR or white light mode to maintain visibility in complete darkness.

Motorized Pan & Tilt Functionality

Unlike standard fixed cameras, this PT (Pan-Tilt) camera offers extensive coverage with 350° horizontal pan and 100° vertical tilt adjustment. This allows for comprehensive monitoring of large areas and the flexibility to adjust viewing angles as needed. Whether installed on ceilings or walls, the PT functionality ensures you can cover every corner of your property.

Integrated Two-Way Audio

What sets this camera apart is its built-in two-way audio capability. A high-quality microphone and 2W speaker are integrated directly into the camera housing, enabling real-time communication with anyone within range. The microphone has a pickup radius of up to 5 meters, while the speaker projects clear audio up to 5 meters away.

Advanced audio processing features include:

• Echo Cancellation: Prevents feedback and echoes during two-way conversations.

• AI Noise Reduction: Filters out background noise for clearer voice transmission.

• Automatic Gain Control: Maintains consistent audio levels.

This makes the camera ideal for applications such as door-to-door intercoms, perimeter monitoring, and situations where verbal warnings may be necessary.

Active Strobe Light & Siren Alarm

The camera features a powerful active alarm system with both visual and audible deterrents. Red and blue flashing strobe lights can be activated automatically upon motion detection or manually via the DVR. Combined with the built-in audio siren, this creates a formidable deterrent against potential intruders, startling them and drawing attention to the security event.

Smart Hybrid Light Technology

This camera features Hikvision’s advanced Smart Hybrid Light system, integrating both infrared and white light LEDs for flexible night vision options:

• IR Mode: Provides covert surveillance with up to 25 meters of infrared illumination—ideal for discreet monitoring where visible light is undesirable.

• White Light Mode: Activates built-in white LEDs for full-color night vision up to 20 meters, allowing you to capture identifying details like clothing and object colors in low-light conditions.

• Smart Mode: Automatically switches between IR and white light based on scene conditions, optimizing both visibility and deterrence.

4-in-1 Versatility (TVI/AHD/CVI/CVBS)

This camera offers maximum flexibility for system integration with a single port that outputs four switchable HD analog signals. Whether your Digital Video Recorder (DVR) supports HDTVI, AHD, HDCVI, or traditional CVBS analog, this camera is compatible, making it an excellent choice for both new installations and upgrades to existing analog systems.

Wide-Angle 2.8mm Lens

This specific model comes with a fixed 2.8mm lens, offering a wide horizontal field of view of 105°, a vertical field of view of 59°, and a diagonal field of view of 127°. This wide-angle perspective makes it perfectly suited for monitoring broad areas such as lobbies, reception areas, open offices, retail floors, and large hallways, ensuring comprehensive coverage with fewer cameras.

Extended Transmission Distance

The camera supports long-distance video transmission over coaxial cable—up to 800 meters for HD analog signals. This makes it ideal for larger facilities, warehouses, educational campuses, hospitals, and multi-story buildings where cameras may be located far from the recording equipment.

Advanced Image Enhancement

To ensure the highest quality footage, the camera includes several sophisticated image processing features:

• Digital WDR (Wide Dynamic Range): Balances exposure in high-contrast scenes, allowing you to see details in both bright and shadowed areas simultaneously.

• DWDR / BLC / HLC / Global / HLS: Multiple image enhancement options for optimized video quality in various lighting conditions.

• 2D DNR (Digital Noise Reduction): Minimizes image noise and grain, particularly in low-light conditions, resulting in cleaner video.

• Adjustable Settings: Anti-banding, brightness, sharpness, and Smart IR can be customized via the DVR interface.

Weather-Resistant Durability

The camera features a durable plastic housing and is built to withstand challenging environments with an operating temperature range of -40°C to 60°C (-40°F to 140°F) and humidity tolerance up to 90%. This makes it suitable for use in indoor and covered outdoor locations where it may be exposed to temperature fluctuations.

Turbo HD 8.0 Series Technology

As part of Hikvision’s revolutionary Turbo HD 8.0 series, this camera incorporates four major innovations that bring users real-time communication and enhanced night vision:

• TVI Two-Way Audio: Crystal-clear conversations with intelligent noise reduction that isolates human voices by filtering ambient sounds.

• Smart Hybrid Light Technology: Extended across the entire Turbo HD 8.0 range for enhanced night vision capabilities.

Energy-Efficient Operation

The camera is designed for efficient operation, with a maximum power consumption of 10.5W when powered by a 12 VDC ± 25% supply. Hikvision recommends using one power adapter per camera for optimal performance. If a high-impedance cable is used (such as the 18m extension cable in the kit package), a 15 VDC adapter is required.

Technical Specifications

General

• Model Number: DS-2CE70D0T-PTLXTS(2.8mm)(O-STD)

• Product Type: Indoor/Outdoor Smart Hybrid Light PT Turret Camera with Two-Way Audio & Siren

• Image Sensor: 2 MP CMOS

• Signal System: PAL / NTSC (Switchable)

• Material: Plastic Housing

• Dimensions: Ø123.7 mm × 110.8 mm (4.87″ × 4.36″)

• Weight: Approx. 345 g (0.76 lb.)

Camera & Lens

• Max. Resolution: 1920 (H) × 1080 (V)

• Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Time: PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s

• Day & Night: ICR (Infrared Cut Filter)

• Lens Type: 2.8 mm Fixed Focal Lens

• Lens Mount: M12

• Aperture: F1.6

• Field of View (2.8mm): Horizontal: 105°, Vertical: 59°, Diagonal: 127°

• Angle Adjustment: Pan: 0° to 350°, Tilt: 0° to 100°

Audio

• Built-in Microphone: Yes (1)

• Pickup Distance: In a radius of up to 5 m

• Built-in Speaker: Yes, 2W rated power

• Speaker Range: In a radius of up to 5 m

• Audio Function: Echo Cancellation, AI Noise Reduction, Automatic Gain Control

Illumination

• Supplement Light Type: Smart, IR, White Light (Smart Hybrid)

• Supplement Light Range: IR: Up to 25 m; White Light: Up to 20 m

• Smart Supplement Light: Yes


• Frame Rate: TVI: 1080p @ 25 fps/30 fps

• Wide Dynamic Range (WDR): Digital WDR

• Image Enhancement: DWDR, BLC, HLC, Global, HLS

• Noise Reduction: 2D DNR

• Day/Night Mode: Auto/Color

• White Balance: Auto, Manual

• Image Settings: Anti-banding, Brightness, Sharpness, Smart IR

Interface

• Video Output: 1 HD analog output (switchable TVI/AHD/CVI/CVBS)

• Alarm: Flashing Light Alarm (Red & Blue)

• Communication: HIKVISION-C

Electrical

• Power Supply: 12 VDC ± 25%

• Power Consumption: Max. 10.5 W

• Recommended Power: Use one power adapter per camera. If high-impedance cable (e.g., 18m extension cable) is used, 15 VDC adapter required.

Environmental

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
