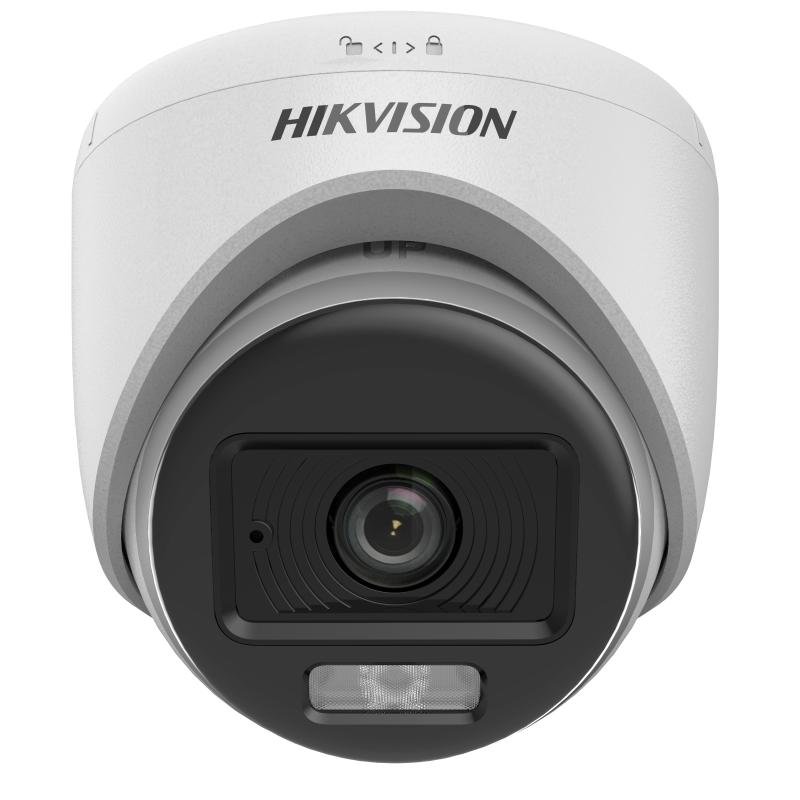

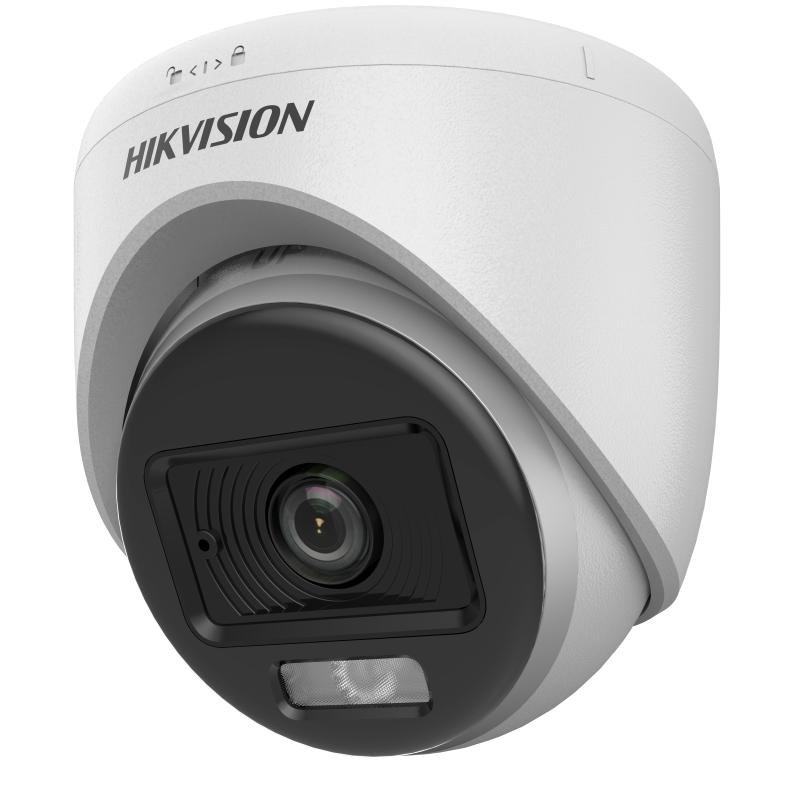

Hikvision 2 MP Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera (DS-2CE70DF0T-LPFS / 2.8mm)

Experience exceptional 24/7 full-color surveillance with the Hikvision 2 MP Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera, a premium analog security solution designed for critical indoor monitoring applications. Featuring an F1.0 super aperture and innovative ColorVu technology, this camera delivers vivid color imaging around the clock. With Smart Hybrid Light illumination, built-in audio, and a discreet turret design, it provides professional-grade security for homes, offices, retail stores, and commercial interiors.

Model: DS-2CE70DF0T-LPFS(2.8MM)

Key Features at a Glance

• 2MP High-Definition Video: Captures clear, detailed footage with 1920 × 1080 resolution for accurate identification of people and objects.

• 24/7 ColorVu Imaging: F1.0 super aperture enables full-color video even in extremely low-light conditions without switching to black and white.

• Smart Hybrid Light Technology: Integrates both IR and white light illumination with three flexible lighting modes—IR light for covert surveillance, white light for full-color night vision, or Smart mode for automatic switching based on scene conditions.

• 20m White Light Range: Provides bright, full-color night imaging with white light illumination up to 20 meters.

• Built-in Microphone: High-quality audio capture with audio over coaxial cable, eliminating the need for separate audio wiring.

• 4-in-1 Switchable Output: Versatile compatibility supporting four video formats: TVI, AHD, CVI, and CVBS (analog).

• Wide-Angle 2.8mm Lens: Provides a 106° horizontal field of view, ideal for monitoring broad indoor areas like lobbies, hallways, and open spaces.

• Discreet Turret Design: Low-profile, dome-style housing blends seamlessly with indoor décor while deterring tampering.

• Easy Installation: 3-axis adjustment mechanism (pan, tilt, and rotate) for precise positioning during setup.

• Long Transmission Distance: Up to 800 meters for HD analog video transmission over coaxial cable.

Detailed Description

24/7 ColorVu Imaging with F1.0 Super Aperture

The DS-2CE70DF0T-LPFS utilizes Hikvision’s innovative ColorVu technology to deliver vivid full-color video around the clock. Unlike standard cameras that switch to black-and-white mode in low light, the F1.0 super aperture allows significantly more light to reach the image sensor, capturing rich color details even in near-darkness. With a minimum illumination of just 0.003 Lux (F1.0, AGC ON), this camera provides exceptional low-light performance without relying solely on artificial illumination.

Smart Hybrid Light Technology

This camera features Hikvision’s advanced Smart Hybrid Light system, integrating both infrared and white light LEDs for flexible night vision options:

• IR Mode: Provides discreet surveillance with infrared illumination—ideal for covert monitoring where visible light is undesirable.

• White Light Mode: Activates built-in white LEDs for full-color night vision, allowing you to capture identifying details like clothing and object colors in low-light conditions.

• Smart Mode: Automatically switches between IR and white light based on scene conditions, optimizing both visibility and deterrence.

The white light illumination provides up to 20 meters of range, ensuring comprehensive coverage of indoor spaces after dark.

Built-in Audio Surveillance

Unlike standard analog cameras, this premium model includes a built-in microphone for high-quality audio capture. The audio is transmitted over the same coaxial cable as the video signal, eliminating the need for separate audio wiring and simplifying installation. The microphone has a pickup distance of up to 5 meters, providing clear audio monitoring of your property and enabling you to hear what’s happening as well as see it in vivid color.

High-Quality 2MP Imaging

The camera utilizes a high-performance 2MP CMOS image sensor to deliver detailed and clear 1080p HD video at up to 30 frames per second. With 1920 × 1080 resolution, it captures crisp footage suitable for identifying faces, objects, and activities within indoor environments.

4-in-1 Versatility (TVI/AHD/CVI/CVBS)

This camera offers maximum flexibility for system integration with a single port that outputs four switchable HD analog signals. Whether your Digital Video Recorder (DVR) supports HDTVI, AHD, HDCVI, or traditional CVBS analog, this camera is compatible, making it an excellent choice for both new installations and upgrades to existing analog systems requiring premium image quality.

Wide-Angle 2.8mm Lens

This specific model comes with a fixed 2.8mm lens, offering a wide horizontal field of view of 106°, a vertical field of view of 56°, and a diagonal field of view of 124°. This wide-angle perspective makes it perfectly suited for monitoring broad indoor areas such as lobbies, reception areas, open offices, retail floors, classrooms, and large hallways, ensuring comprehensive coverage with fewer cameras.

Discreet Turret Design

The camera features a low-profile turret (dome) design that blends discreetly with any indoor environment. The sleek, rounded housing is less intrusive than traditional bullet cameras and helps deter tampering by making the camera’s viewing direction less obvious. The compact dimensions allow for versatile placement on ceilings or walls.

Easy Installation with 3-Axis Adjustment

Installation is simplified by the camera’s 3-axis adjustment mechanism, allowing installers to pan 0° to 360°, tilt 0° to 75°, and rotate 0° to 360° to achieve the perfect viewing angle regardless of the mounting surface. The turret design allows for flush ceiling mounting or wall mounting, providing flexibility for various indoor applications.

Extended Transmission Distance

The camera supports long-distance video transmission over coaxial cable—up to 800 meters for HD analog signals. This makes it ideal for larger indoor facilities, warehouses, educational campuses, and multi-story buildings where cameras may be located far from the recording equipment.

Advanced Image Enhancement

To ensure the highest quality footage, the camera includes several sophisticated image processing features:

• 3D DNR (Digital Noise Reduction): Minimizes image noise and grain, particularly in low-light conditions, resulting in cleaner video and more efficient storage.

• Digital WDR (Wide Dynamic Range): Balances exposure in high-contrast scenes, allowing you to see details in both bright and shadowed areas simultaneously.

• DWDR / BLC / HLC / Global: Multiple image enhancement options for optimized video quality in various lighting conditions.

• Adjustable Settings: Brightness, sharpness, anti-banding, and AGC can be customized via the DVR interface.

Image Parameter Modes

The camera offers three selectable image parameter modes for different applications:

• STD (Standard): Balanced image quality for general surveillance

• HIGH-SAT (High Saturation): Enhanced color vibrancy for more vivid footage

• HIGHLIGHT: Optimized for scenes with bright lighting conditions

Energy-Efficient Operation

The camera is designed for efficient operation, with low power consumption when powered by a 12 VDC ± 25% supply. Hikvision recommends using one power adapter per camera for optimal performance.

Technical Specifications

General

• Model Number: DS-2CE70DF0T-LPFS

• Product Type: Indoor Smart Hybrid Light with ColorVu Fixed Turret Camera

• Image Sensor: 2 MP CMOS

• Signal System: PAL / NTSC (Switchable)

• Material: Plastic Housing

• Dimensions: Φ 110.9 mm × 86.3 mm (Φ 4.37″ × 3.40″)

• Weight: Approx. 250 g (0.55 lb.)

Camera & Lens

• Max. Resolution: 1920 (H) × 1080 (V)

• Min. Illumination: 0.003 Lux @ (F1.0, AGC ON), 0 Lux with white light

• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

• Day & Night: ICR (Infrared Cut Filter)

• Lens Type: 2.8 mm Fixed Focal Lens

• Lens Mount: M12

• Aperture: F1.0

• Field of View (2.8mm): Horizontal: 106°, Vertical: 56°, Diagonal: 124°

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Audio

• Built-in Microphone: Yes (1)

• Pickup Distance: Up to 5 m

• Audio Transmission: Audio over coaxial cable

Illumination

• Supplement Light Type: Smart, IR, White Light (Smart Hybrid)

• Supplement Light Range: White Light: Up to 20 m

• Smart Supplement Light: Yes


• Frame Rate: TVI: 1080p @ 25 fps/30 fps; CVI: 1080p @ 25 fps/30 fps; AHD: 1080p @ 25 fps/30 fps; CVBS: PAL/NTSC

• Wide Dynamic Range (WDR): Digital WDR

• Image Enhancement: 3D DNR, BLC, HLC, Global

• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT

• Day/Night Mode: Auto/Color/BW

• White Balance: Auto, Manual

• AGC: Yes

• Image Settings: Brightness, Sharpness, Anti-banding

Interface

• Video Output: 1 HD analog output (switchable TVI/AHD/CVI/CVBS)

• Communication: HIKVISION-C

• Transmission Distance: Up to 800 m for HD analog video

Electrical

• Power Supply: 12 VDC ± 25%

• Power Consumption: Max. 3.1 W

• Recommended Power: Use one power adapter per camera

Environmental

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

• Protection Level: Suitable for indoor use only
