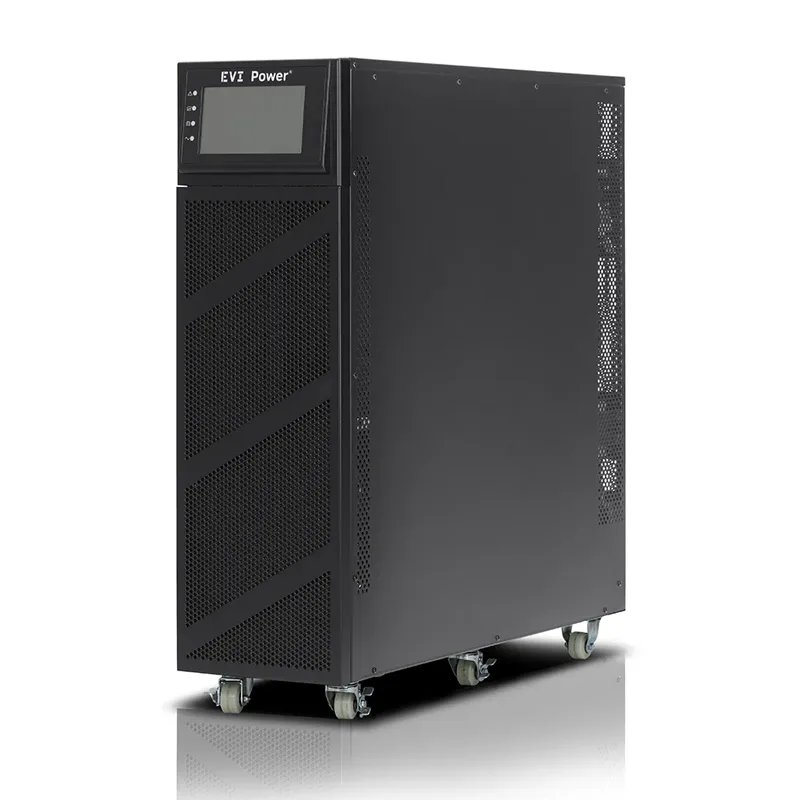

EVI 40000VA / 36000W Tower Online 3 Phase UPS – EP-UPS40Y33OT

The EVI 40000VA / 36000W Tower Online 3 Phase UPS is a high-capacity, industrial-grade power protection solution engineered for mission-critical systems that demand uninterrupted, clean, and stable three-phase power. Utilizing advanced online double-conversion technology with DSP digital control, this UPS ensures zero transfer time during power disturbances, protecting sensitive equipment from voltage fluctuations, surges, and blackouts.

Designed for large data centers, industrial plants, telecom systems, healthcare facilities, and commercial enterprises, the EP-UPS40Y33OT guarantees reliability, efficiency, and operational continuity for even the most demanding applications.

Key Features

• Three-Phase Input & Output: High-capacity 3-phase protection with inbuilt batteries for instant backup.

• Online Double-Conversion with DSP Control: Provides clean sine wave output and zero transfer time, ensuring continuous operation of critical loads.

• High Output Capacity: 40,000VA / 36,000W with 0.9 output power factor for maximum usable power.

• N+X Parallel Redundancy: Supports up to 4 units in parallel for scalable and fault-tolerant operation.

• Low Input Harmonics: Input current distortion <3% (THDi) for minimal impact on upstream electrical systems.

• Wide Input Voltage Range: 208–478 Vac to accommodate fluctuating or unstable power networks.

• Wide Input Frequency Range: 40–70 Hz for global compatibility.

• ECO Function: Energy-efficient operation while maintaining reliable performance.

• PFC Technology: Power factor correction improves efficiency and load management.

• Fully Digital Control: Digital management of charging, rectifier, and inverter ensures precise and reliable operation.

• DC Start Function: Allows startup directly from battery during total power loss.

• Advanced Communication & Monitoring: USB, RS232, RS485, Parallel port, and dry contact; optional SNMP or relay cards for remote monitoring.

• Intelligent Charging Management: Optimizes battery life and performance.

• EPO Function: Emergency power-off feature for safety compliance.

• Optional External Battery Packs: Extend runtime for critical operations as needed.

• 7” Touch LCD Display: Provides real-time monitoring of voltage, load, battery status, alarms, and system parameters.

• Terminal Ports: Convenient input/output terminals for flexible installation.

• Warranty: 2-year UPS warranty, 1-year battery warranty for added reliability.

Applications

• Data Centers & Server Rooms: Protect IT infrastructure and ensure continuous uptime.

• Industrial & Manufacturing Facilities: Safeguard sensitive machinery and production systems.

• Telecom & Networking Systems: Maintain uninterrupted operation of switches, routers, and communication systems.

• Healthcare & Medical Equipment: Reliable power for hospitals, clinics, and laboratories.

• Commercial & Banking Systems: Safeguard ATMs, transaction servers, and critical enterprise operations.

Why Choose the EVI 40000VA 3 Phase UPS?

The EP-UPS40Y33OT combines high-capacity design, advanced technology, and intelligent monitoring to provide robust, reliable, and fully scalable three-phase power protection. With parallel redundancy, fully digital control, extended runtime options, and energy-saving ECO mode, this UPS ensures continuous, efficient, and safe operation of your critical systems, even under extreme power conditions.
